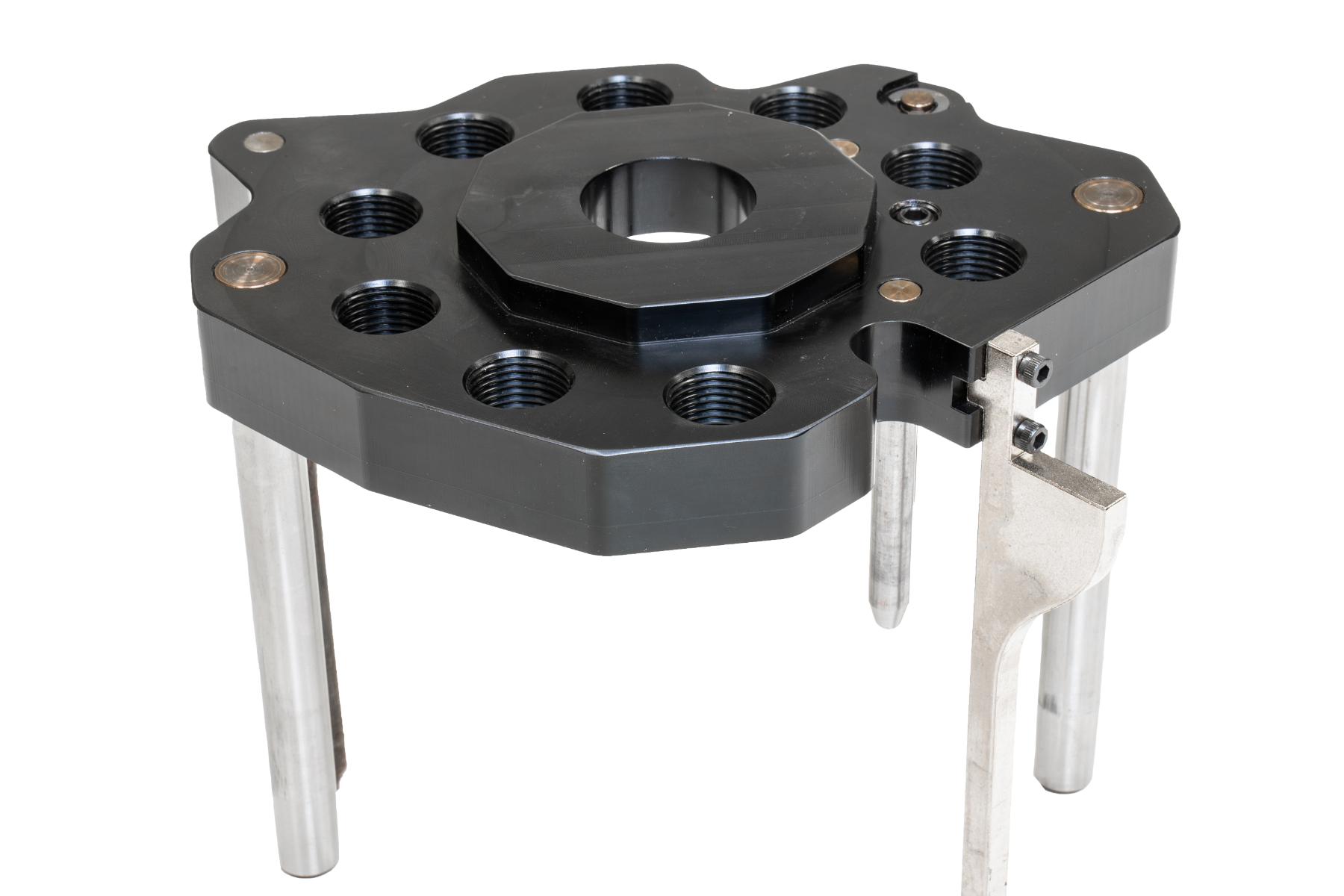

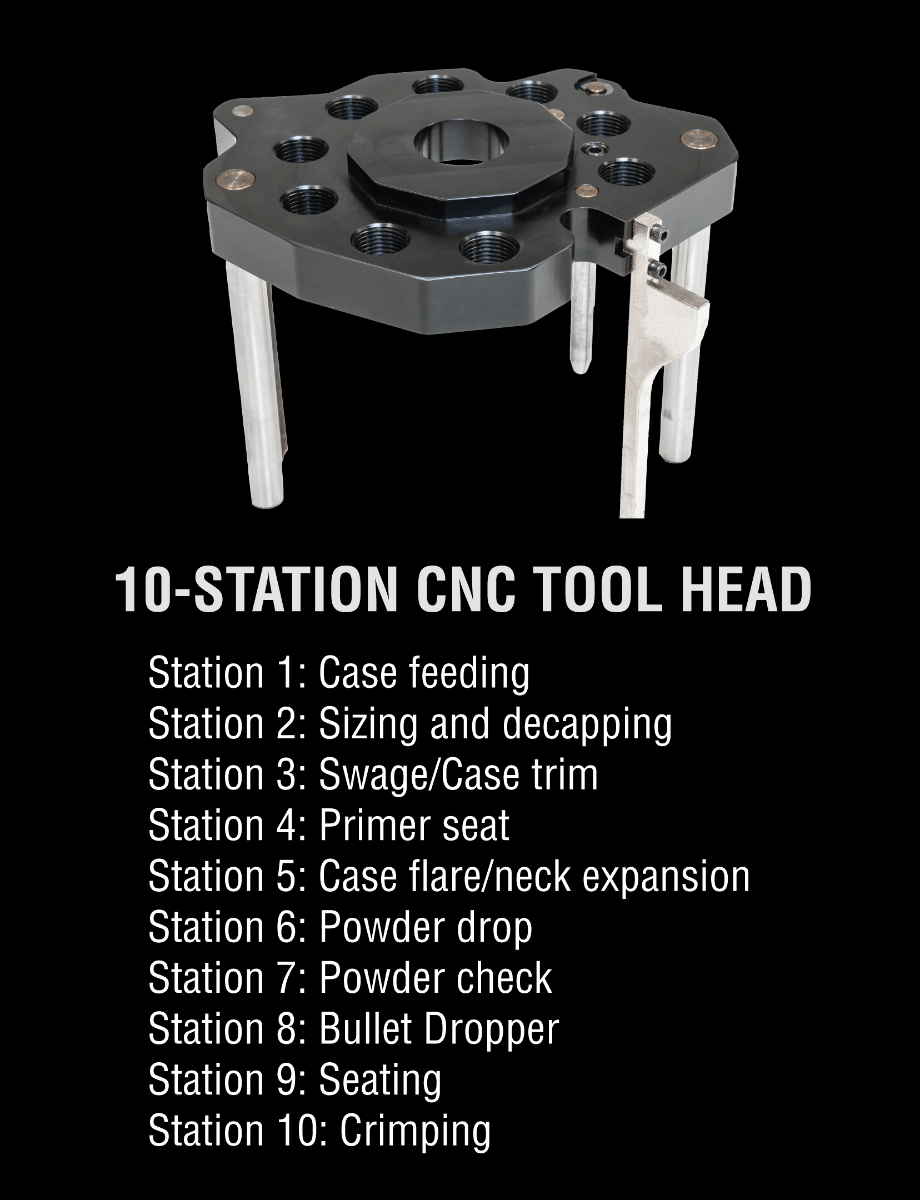

10-Station CNC Toolhead
Station 1: Case Feeding
Station 2: Sizing and Decapping
Station 3: Swage/Case trim
Station 4: Primer Seat
Station 5: Case Flare/Neck Expansion
Station 6: Powder Drop
Station 7: Powder Check
Station 8: Bullet Dropper
Station 9: Seating
Station 10: Crimping

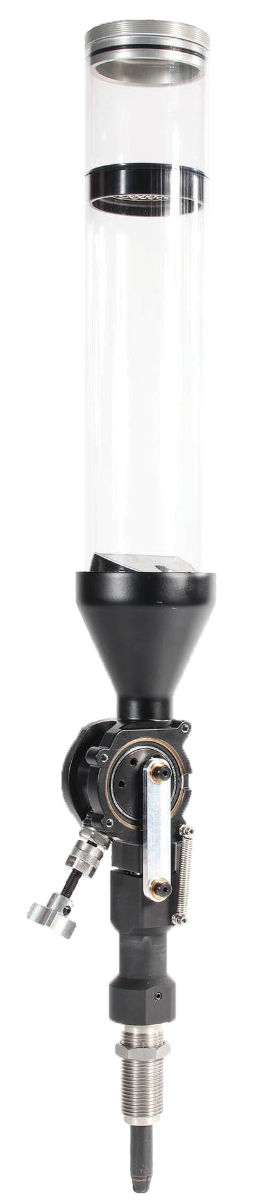

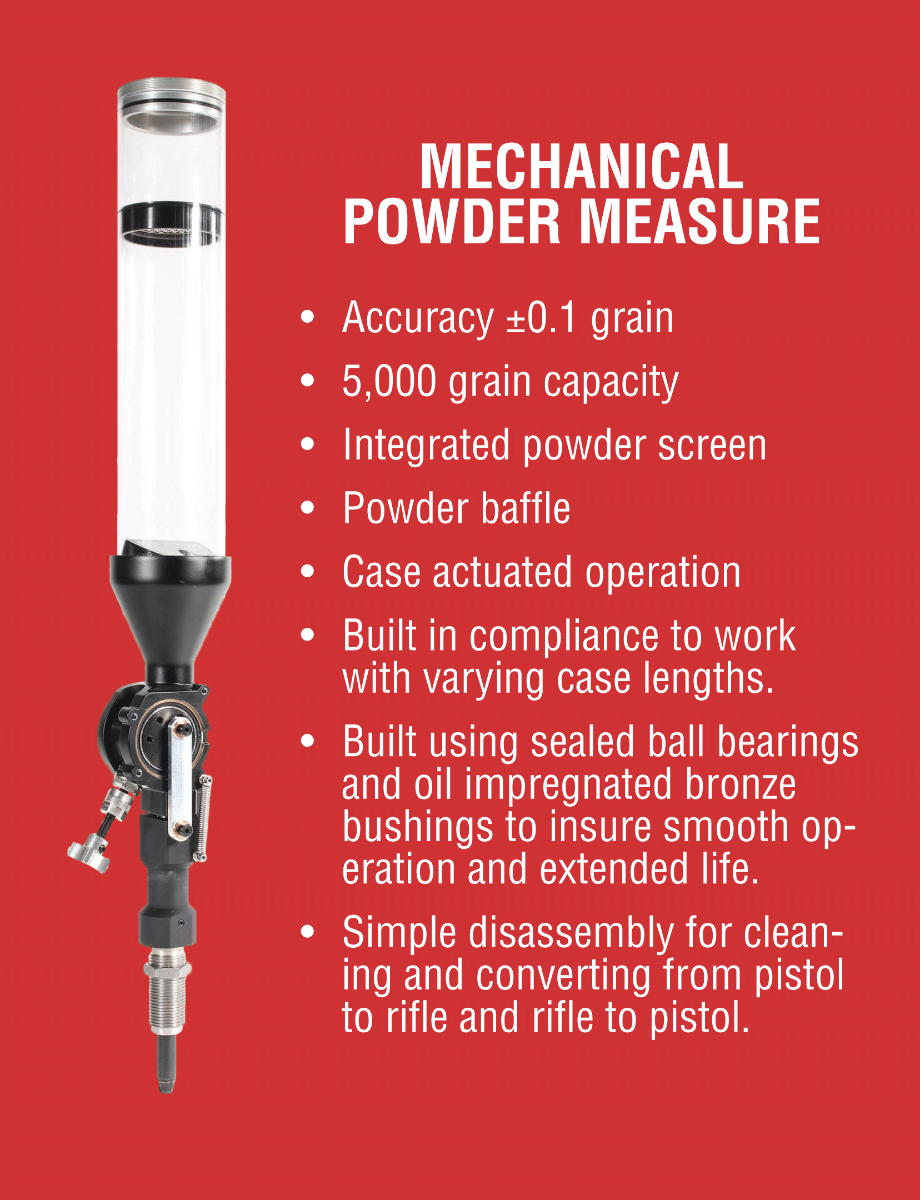

Mechanical Powder Measure
• Accuracy ±0.1 grain
• 5,000 grain capacity
• Integrated powder screen
• Powder baffle
• Case actuated operation
• Built in compliance to work with varying case lengths.
• Built using sealed ball bearings and oil impregnated bronze bushings to insure smooth operation and extended life.
• Simple disassembly for cleaning and converting from pistol to rifle and rifle to pistol.

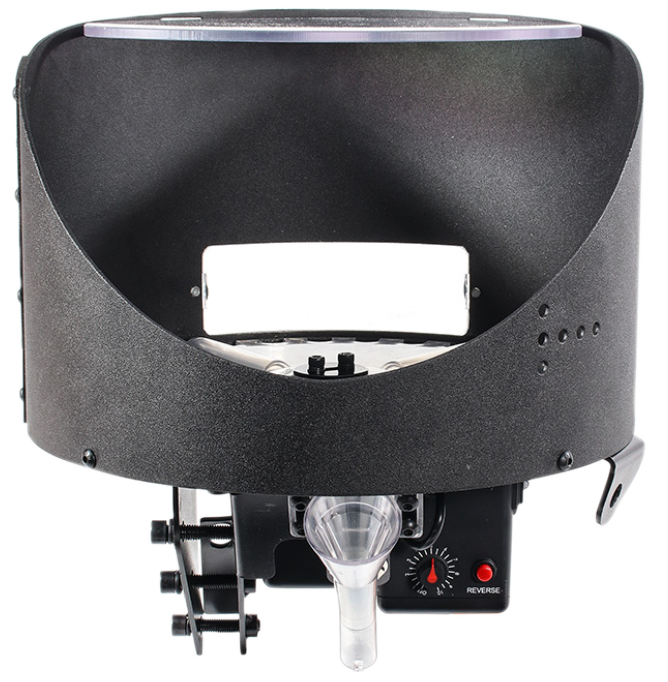

11" High Speed Case Feeder
• All metal construction for strength and durability
• Variable speed DC motor
• Advanced proximity switch controls case flow
• Unique bowl design features a trap door to remove cases
• Adjustable funnel handles most calibers
• Quick detach funnel adapter for easy removal and installation.

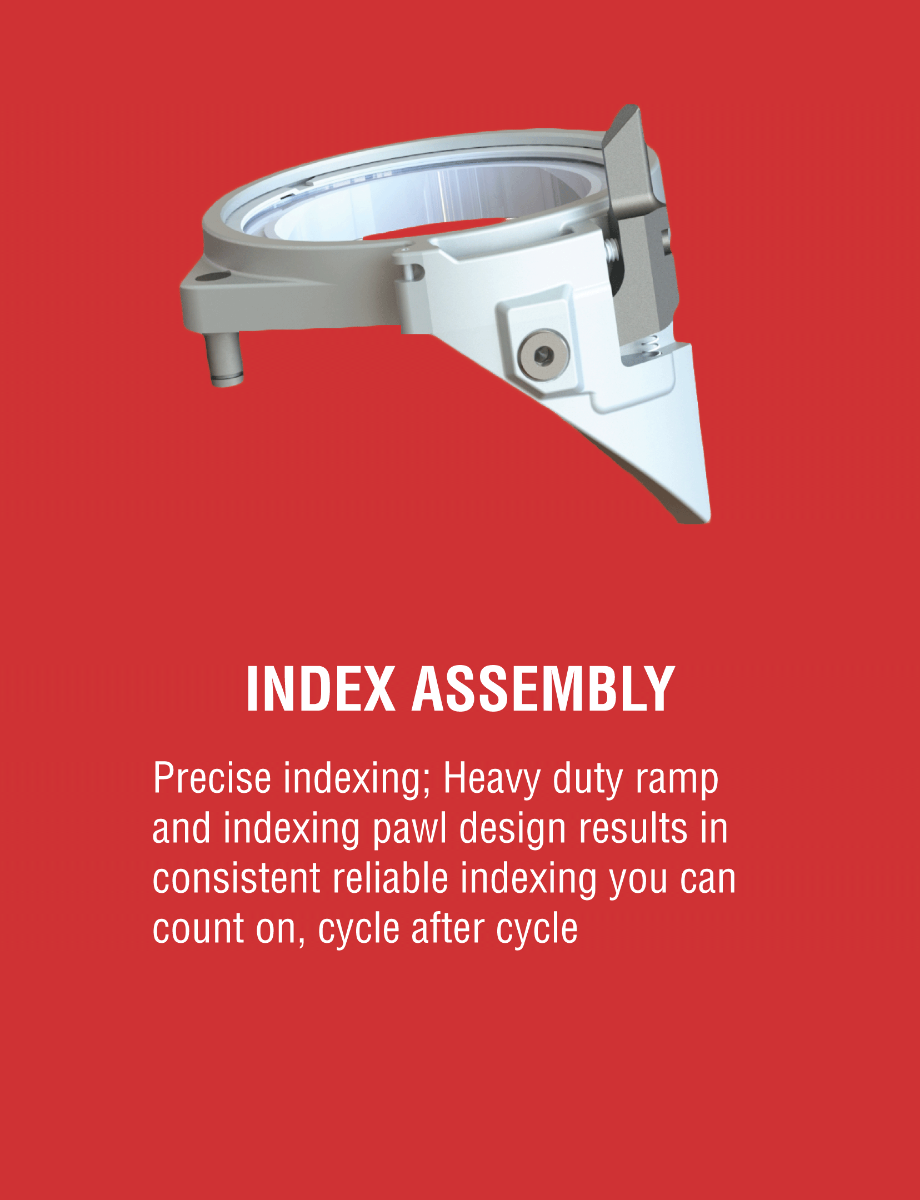

Index Assembly
Precise indexing; Heavy duty ramp and indexing pawl design results in consistent reliable indexing you can count on, cycle after cycle

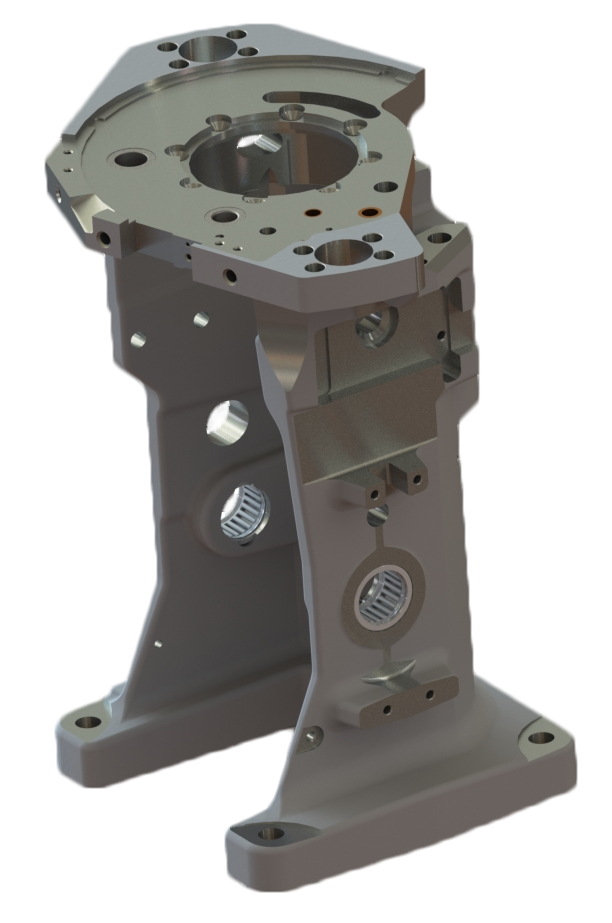

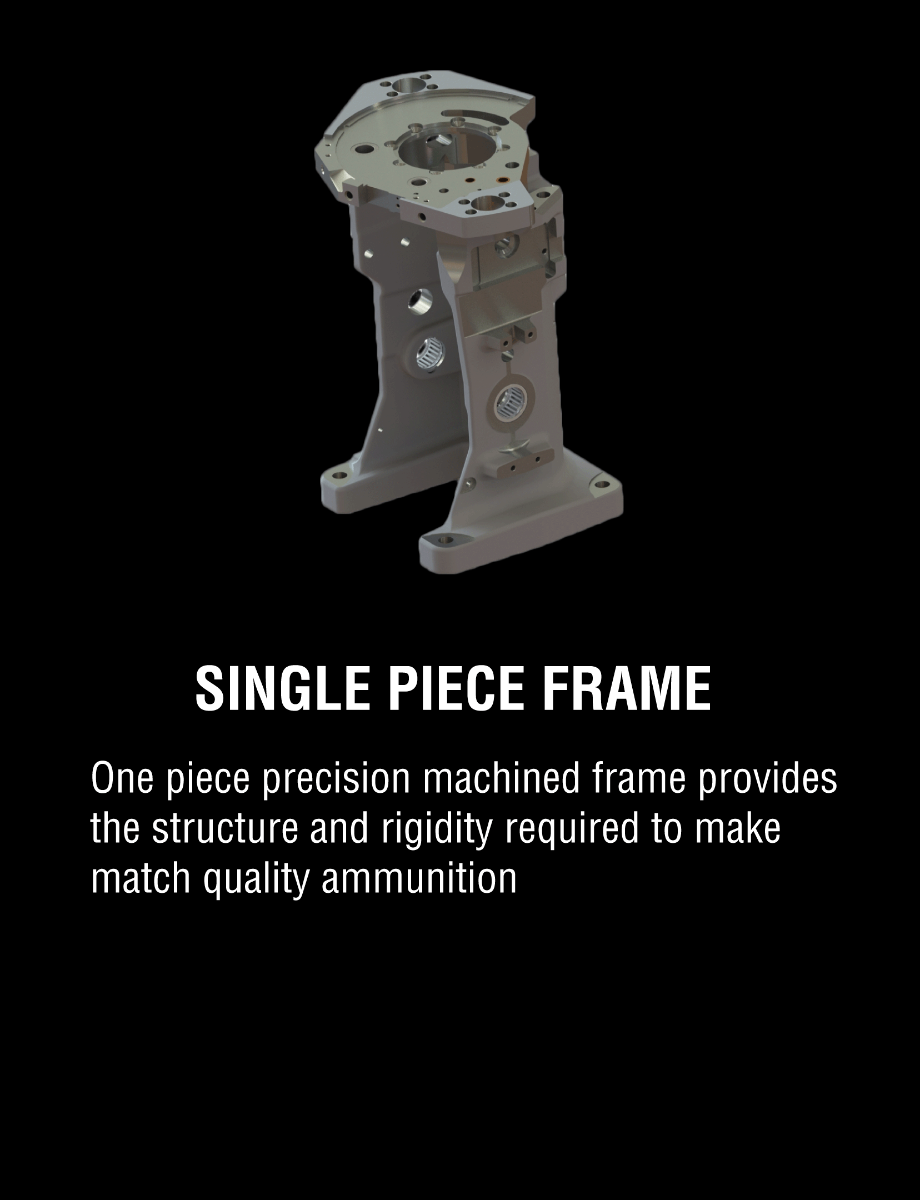

Single Piece Frame
One piece precision machined frame provides the structure and rigidity required to make match quality ammunition

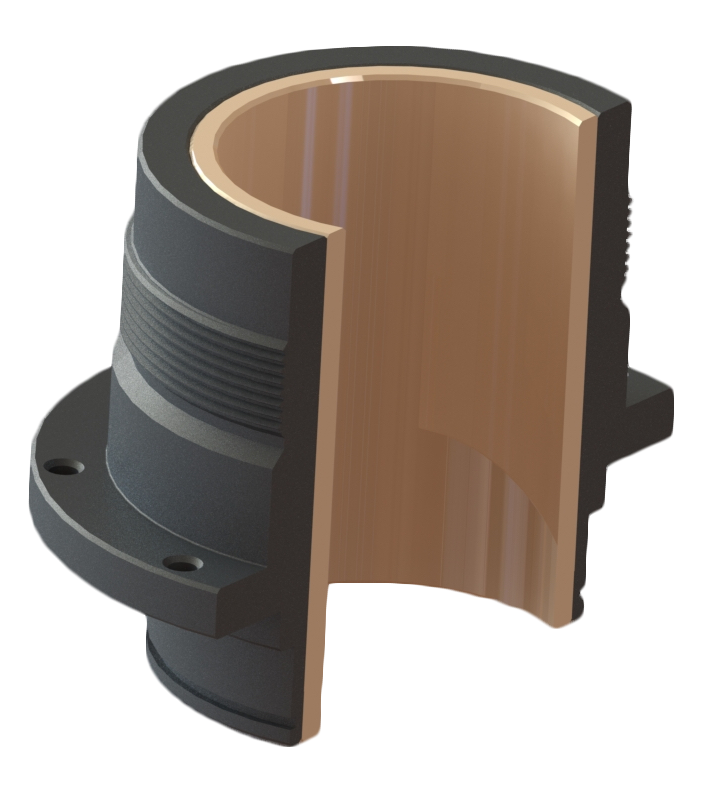

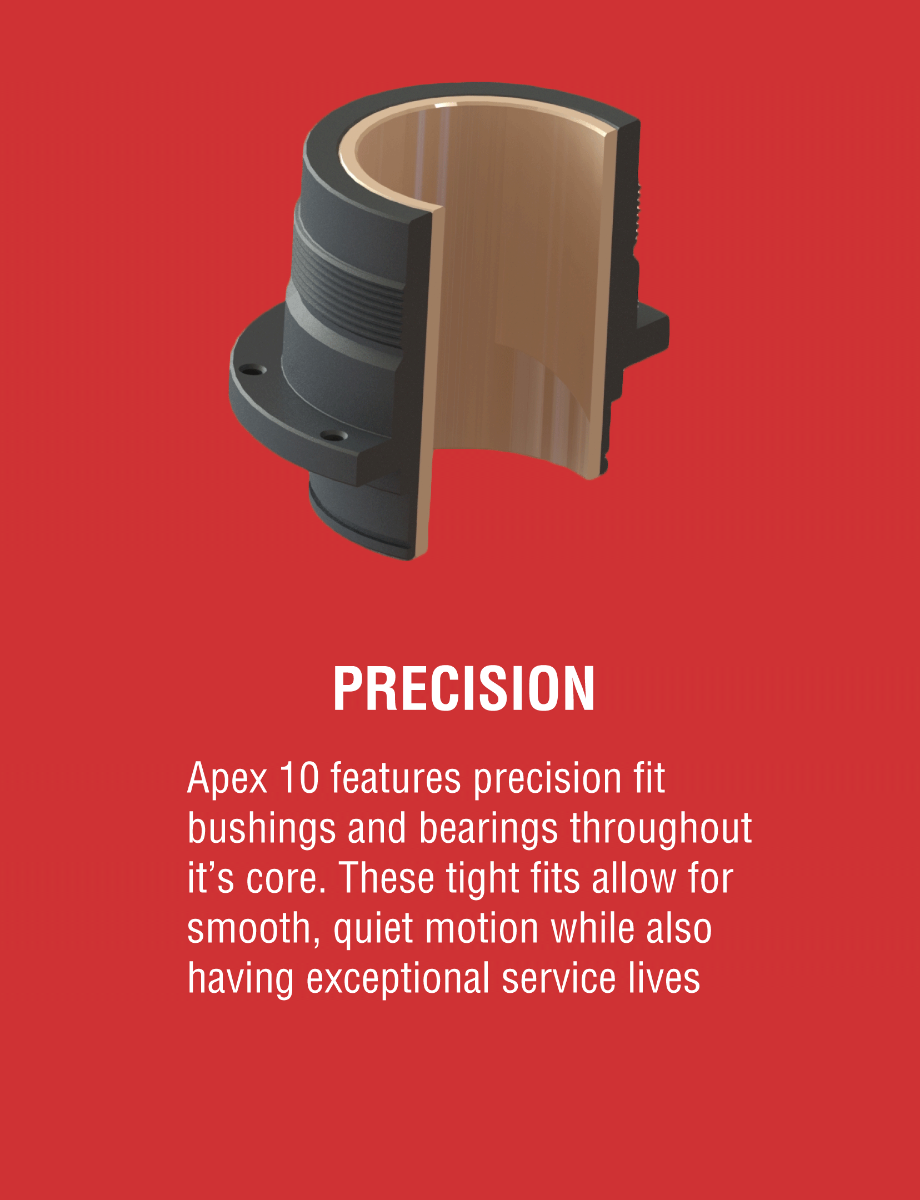

Precision
Precise indexing; Heavy duty ramp and indexing pawl design results in consistent reliable indexing you can count on, cycle after cycle
Why 10 Station's?
A common question we're asked here at Mark 7® is “Why do our presses have 10 stations?” While a simple question for the seasoned reloader already familar with 7 station presses, it's not as obvious to those new to reloading or even progressive reloading. The core strength of a 10-Station toolhead is how it allows you to seperate certain die operations, letting them perform a single, dedicated job. Some of these operations include:
- Sizing and Decapping are Separated
By utilizing a universal decapping die, you can remove the decapping pin that comes inside of the sizing die and install it over the priming station. This allows the sizing die to have it's own station, as well as serve as a centering/hold down for more consistent priming. - Flaring and Powder Drop are Separated
By seperating these two stations, you're given both better quality and control over the flare of the case mouth. This also allows the powder measure to only drop powder. Historically, systems that combined these two functions could have brass stick to the flare plug and can “pop off” when the Toolhead is lifted. This would jar the powder measure and could cause inconsistent charges. Our powder measures are also not capable of flaring, damage can occur to the powder measure if flaring is attempted. - Bullet Feeder, Powder Check, Seating AND Crimp Die are all Separated
A press with less toolhead stations means having to sacrifice at least one of these, and often times two. This not only gives you more effective rounds when reloading, but also saves large amounts of time since you don't need to constantly switch between different dies. - Separating Stations Produces Superior Results
Some die makers combine certain processes, such as seating and crimping, but this produces subpar results. The reason for this is because if you try to crimp the case mouth while you are seating the bullet, you will likely damage the jacket of the bullet. This then causes poor accuracy and inconsistent ammunition at best. Separating each station allows you to maximize each round reloaded. - Freedom of Customization
Despite the name, you don't actually need to utilize all 10-stations. If, for example, you currently only have dies for basic pistol reloading, you can still use our 10-Station toolhead the same as any other toolhead. With the extra stations at hand though, it makes expanding your reloading setup a much smoother process.
These are just a few of the many reasons why 10-stations is far and away the best option for a serious reloader. If you're not sure where to start, check out some of our recommended setups below. By clicking the image of the toolhead itself or the button below labled "Setup", you can take a closer look at each individual station on the toolhead.
10 Station Toolhead Setup - <br> Full Loading
This is how you’d set up your tool head when fully loading ammunition. This would be the most common "out of the box" way you can set up an Apex 10.
Overview
10 Station Toolhead Setup - <br> Loading Primed Brass
This is how you’d set up your tool head on an Apex 10 if you're loading pre-primed brass.
Overview
10 Station Toolhead Setup - <br> Processing Pistol Brass
This is how you’d set up your tool head on an Apex 10 if you wanted to process pistol brass.
Overview
Station 6: Empty
Station 7: Empty
Station 8: Empty
Station 9: Empty
Station 10: Empty
Station 1: Case Feed
Station 2: Universal Decap Die
Station 3: Universal Hold Down Die
Station 4: Size Die
Station 5: Empty
Station 6: Empty
Station 7: Empty
Station 8: Empty
Station 9: Empty
Station 10: Empty
10 Station Offset Toolhead Setup - <br> Proccessing & Trimming Rifle Brass
This is how you’d set up your tool head on an Apex 10 if you wanted to process and/or trim rifle brass.
Overview
Station 6: Partial Trimming
Station 7: Empty
Station 8: Empty
Station 9: Trimming
Station 10: Empty
Station 1: Case Feed
Station 2: Universal Decap Die
Station 3: Universal Hold Down Die
Station 4: Size Die
Station 5: Empty
Station 6: Partial Trimming
Station 7: Empty
Station 8: Empty
Station 9: Trimming
Station 10: Empty
All in One Stroke
A robust 10-station tool head which allows you to “Do It All”
Station 1: Case feeding
Station 2: Sizing and decapping
Station 3: Swage/Case trim
Station 4: Primer seat
Station 5: Case flare/neck expansion
Station 6: Powder drop
Station 7: Powder check
Station 8: Bullet Dropper
Station 9: Seating
Station 10: Crimping
*The above is just one possible set-up. The 10 station tool head offers a large
variety of options for all your reloading and case processing needs.
Upgradeability
The APEX 10 can easily be upgraded withthe following options:
- Autodrive
- Primer Xpress – Electronic Oscillating Primer System
- Digital Powder Measure (only with Autodrive)
- Digital Sensors (only with Autodrive)
- Machine caliber conversion kits that include everything required
to convert the press from one caliber to another - Trimmer kit for rifle processing
Specs and Dimensions
- Dimensions: 36” Tall, 15” Wide, 11” Deep
- Number of Stations: 10
- Caliber Range: 380 up to .308
- Drive System: Manual
- Priming System: Shuttle Disk Stacked Priming System
- Case Feeder: 11” High Speed Case Feeder
- Powder Measure: Mechanical Powder Measure
- Machine Weight: ~70 lbs
Mark 7 APEX 10 Standard Package Includes:
- 11” Case Feeder with variable speed motor
- Mechanical Powder Measure
- 10-station cast iron tool head
- Ergonomically designed operating handle,which can be assembled for right or left-hand use
- Shuttle Disk Stacked Priming System
- Small and Large Primer & Swaging Components included
- Lyman Stainless Steel Pro Hold-Down Die
- Double Guide Rod support for the tool head for more stability
PLEASE NOTE: Hold Down Die is included for Swage operation. Additional dies and bullet feeder are not included with the APEX 10 and must be purchased separately.
- The ease and time required to change calibers depends on both your primer size and level of experience. Small calibers can take as little as 30 minutes or less with all necessary accessories. Small to large caliber or large to small caliber changes could take up to an hour depending on the number of pieces changed.
- No special tools are needed, but a good Allen wrench set is recommended. It will take about an 1 hour to 90 minutes to get the press set up* meaning the press is physically set up but not ready to load on: that will take another 1 to 2 hours. The necessary step are:
- Install the sensors
- Set up and adjust the bullet feeder and case feeder
- Set dies
- Set the sensors
- Set powder measure charge, etc...
- In all, you should expect to spend approximately 90 minutes to set up a manual press, or approximately 3 or more hours for an automated press with sensors.
- The Rev is our flagship/workhorse press that comes standard with a larger 14” case feeder, Mr. Bullet feeder pro, digital powder measure, and commercial vibratory priming system.
- This is a direct drive unit that is extremely smooth in operation and designed to surpass that coveted million round mark.
- Very easy: Simply install your Apex 10® / Evolution™ Autodrive which typically requires 30 - 45 minutes on average.
- This is a “loaded question” (pun intended). This will depend heavily on the cost of your components you purchase.
- We tend to look at this as more of an opportunity to load ammunition to your own specifications and tailor to your paricular guns.
- Your monthly ammo bill is actually likely to increase, not because you are paying more per round, but you will simply be shooting more
- Our presses are 10 station, and designed around, and for automation. Almost by default, this makes them more robust in operation and have much tighter tolerances.
- With 10 stations, we can separate all aspects of reloading to create a better finished round of ammunition, while still adding sensors and bullet drop stations. No more combining seating/crimping dies, powder drop with case flaring, or sizing with decapping.
- Absolutely. All standard 7/8"-14 thread dies will work in our presses as long as they do not need contact with the shell plate for proper operation.
- We would recommend a manual press for anyone who is newer to reloading, or unfamiliar with progressive presses. There is a lot happening all at once with automation and can be a lot for the operator to handle without the basic knowledge of press operation. Automation is a great step up for loaders down the road once they are familiar with the process.
- Automation can, and will add a level of consistency to the operators output. The motor will operate the press in the same manner and speed for every stroke. This can have a positive effect on powder drop, priming and bullet seating/crimping. This will also give a higher sustained output.
- The Apex 10 comes with both small and large priming system components. No conversion parts needed there.
- Caliber specific dies
- Spare tool head and stand (optional but highly recommended for faster caliber changes.)
- Extra powder measure (optional but highly recommended for faster caliber changes)
- if not purchasing a whole P/M, then will need a P/M conversion kit if changing from pistol to rifle or vice versa.
- Bullet feeder conversion kit
- Case feeder conversion plate
- Press conversion kit (101-1068)
- Yes, as long as you are using your press with an autodrive
- Our digital sensors need an auto drive to function.
- We highly recommend our mechanical powder check sensor for use while loading on your Apex 10.
- Yes, when used with an Evolution™/ Apex 10® Autodrive.
Compatible with Mark 7® Autodrive™ & Accesories
Shuttle Disk Priming System for Continuous Feed Operation
Supports our One-Pass Processing and Loading
Works on New and Re-Manufactured Brass
Calibers from .380 up-to .308 Winchester
Smooth & Precise Gear-Based Movement & Shell Plate Indexing
10 Station Manual Loading Machine
The Apex-10 is Mark 7’s premium manually operated press. Featuring a cast iron 10 station tool head, The Apex-10 can accommodate pistol and rifle cases from 380 acp up to 308 Winchester. It includes on press swaging (a standard feature on all Mark 7 presses), an all metal 11-inch-high speed case feeder, mechanical powder measure, stacked priming, and a Lyman Pro Hold Down Die for use over the swage station. It is compatible with our Primer Xpress oscillating priming system, and our autodrive compatible with our apex/evolution automation system.
Designed for automation, and for many optional upgrades, which include the Mark 7® Primer Express, the Mark 7® APEX 10® Autodrive™ and the complete suite of Mark 7® Sensors and parts.
If you own a Mark 7® 1050 Pro/X Autodrive™, it can be modified for use on a APEX 10® with the purchase of a conversion kit.
This product is available in both 110V and 220V
Add Some
Magic

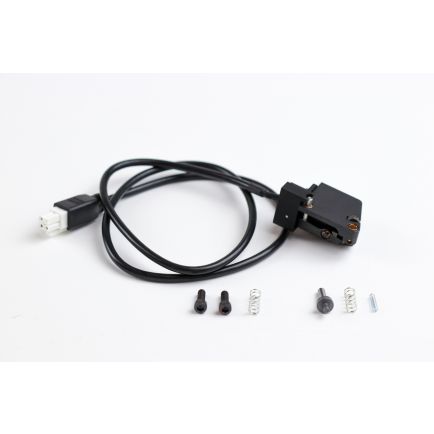

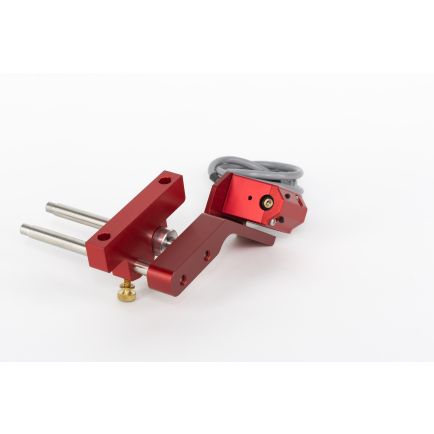

Mark 7® Sensors are truely the "Magic in the Machine."
Our famous Mark 7® Sensors allow for precise press performance.
Must Have
Gear

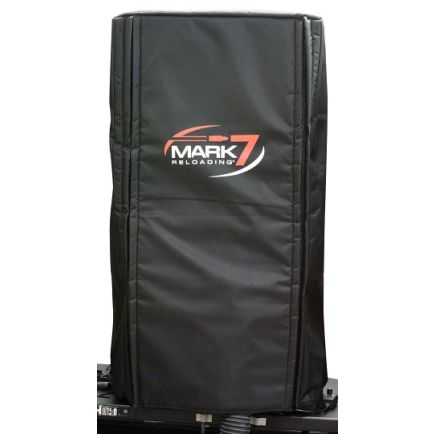

The official Mark 7® Accessories built for your APEX 10®
Watch the APEX 10<sup>®</sup> in Action
Smooth and precise, easy to use, and exactly what you are looking for.
Standard Features
A massive, robust 10-station tool head which allows you to “have it all”
Station 1: Case feeding
Station 2: Sizing and decapping
Station 3: Swage/Case trim
Station 4: Primer seat with hold down
Station 5: Case flare/neck expansion
Station 6: Powder drop
Station 7: Powder check
Station 8: Bullet Dropper
Station 9: Seating
Station 10: Crimping
*The above is just one possible set-up. The 10 station tool head offers a large variety of options for all your reloading and case processing needs.
- Large capacity, fast feeding case collator
- Ergonomically designed operating handle, which can be assembled for right or left-hand use
- 11” Case Feeder with a new and improved case feed system using roller bearings and user-adjustable springs
- Mechanical Powder Measure
- Shuttle Disk Stacked Priming System
- Supports one-pass rifle/pistol processing and loading
- Works with new AND fired brass
- Precision CNC machined aluminum and steel
- Upgradeable with Mark 7® Autodrives and sensors
- Fully supported Mark 7® community and technical help included
- Double Guide Rod support for the tool head creates smoother more in-line function
- Gear-based precision-fit overall operation
- A large assortment of accessories, upgrades and sensors are available - see accessories and sensors below.
Upgrades
The APEX 10® can easily be upgraded with the following options at any point:
- APEX 10® Autodrive™
- Primer Express - Electronic Oscillating Primer System
- Digital Powder Measure (only with Autodrive)
- Digital Sensors (only with Autodrive)
- Machine caliber conversion kits that include all the components required to convert the press from one caliber to another
- Trimmer kit for rifle processing
PLEASE NOTE: Dies and Bullet Feeder are not included with the APEX 10® and must be purchased separately.

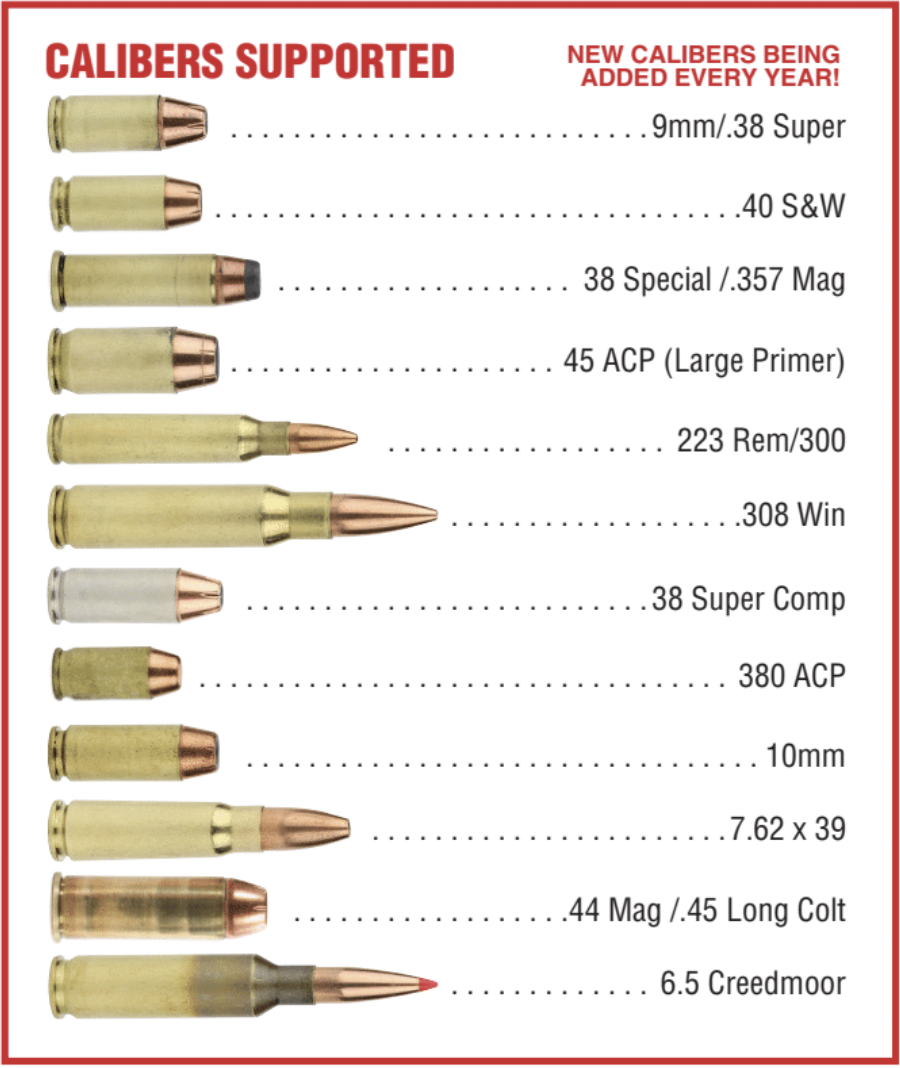

Available Calibers
9mm/.38 Super (#101-1260-01-01)
40 S&W (#101-1260-02-01)
38 Special /.357 Mag (#101-1260-03-01)
45 ACP (Large Primer) (#101-1260-04-01)
223 Remington (#101-1260-05-01)
308 Winchester (#101-1260-06-01)
38 Super Comp (#101-1260-07-01)
380 ACP (#101-1260-08-01)
10mm (#101-1260-09-01)
44 Magnum /.45 Long Colt (#101-1260-11-01)
6.5 Creedmoor (#101-1260-13-01)
Ready To
Power Up?
90% MORE BULLETS | 100% EASIER TO USE

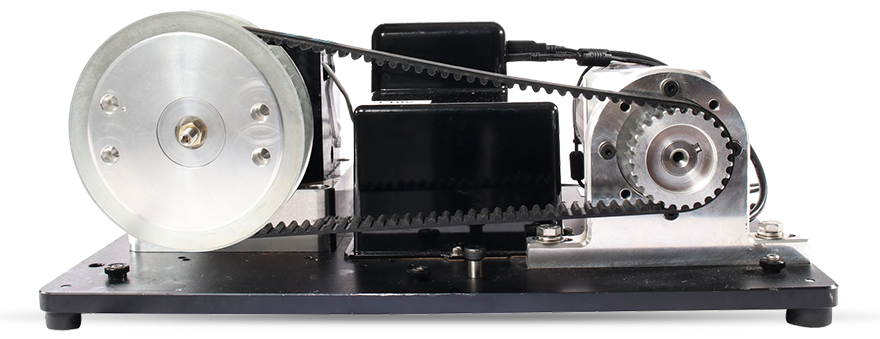

Adding a Mark 7® Autodrive to your new APEX 10® automates your reloading and allows for speeds up to 3500 rounds per hour! The combination of our patented digital sensor technology, torque sensing motor, and JamSense™ technology ensures a safe and trouble-free loading experience.
| SKU | 101-1260 |
|---|---|
| Number of Die Stations | 10 |
| Caliber Range | 380 up to .308 |
| Drive System | Manual |
| Priming System | Shuttle Disk Stacked Priming System |
| Type of Case Feeder | 11" High Speed Case Feeder |
| Type of Powder Measure | Mechanical Powder Measure |
| Machine Weight | 60 lbs |
| Dimensions | 18" Tall, 15" Wide, 11" Deep |
