Evolution Commercial Configurations

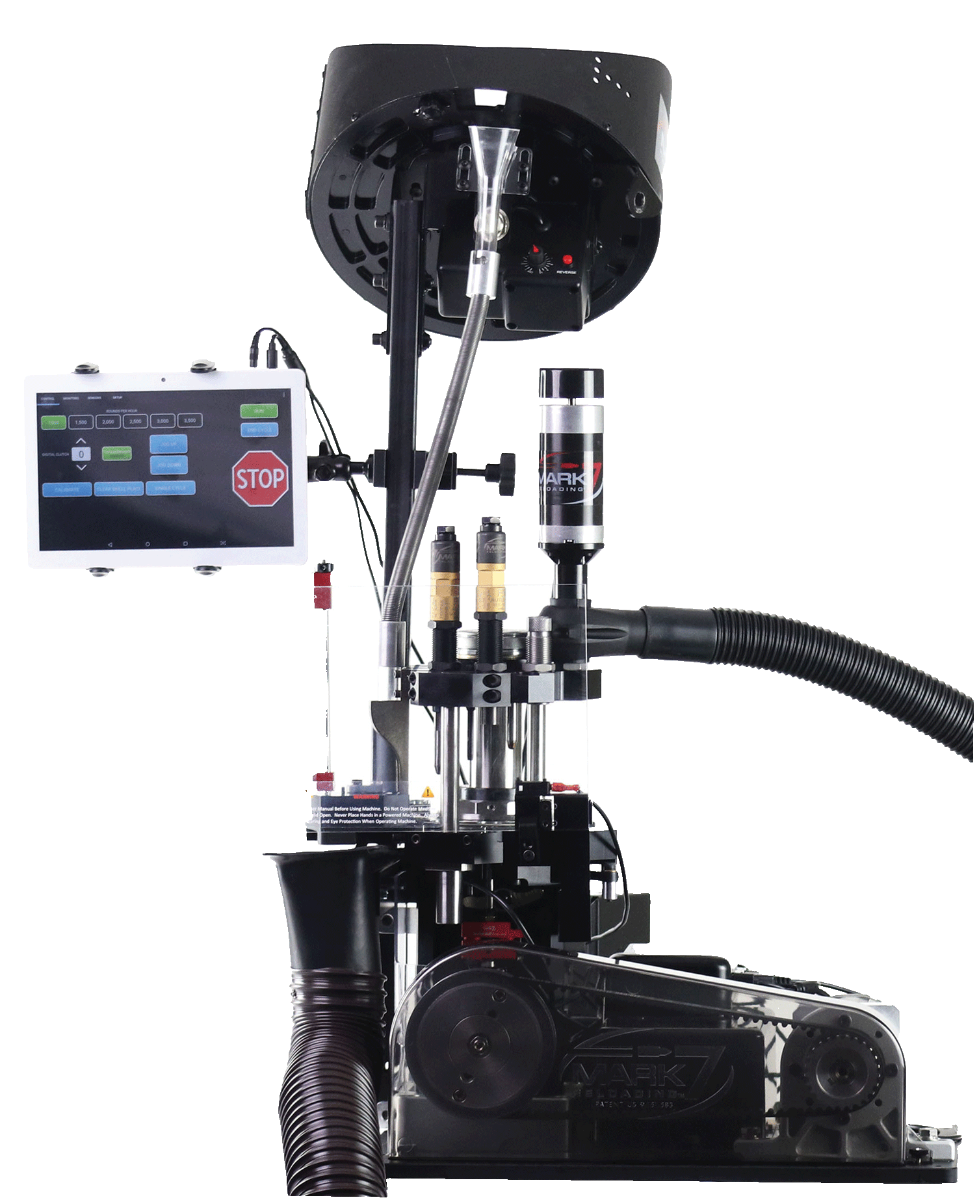

Processing
Starting at $7,024.95
Automated Evolution Commercial
No Priming
14” Case Feeder
Sensors*
($449.90)
• DecapSenseTM
• SwageSenseTM
Accessories*
($934.70)
• Heavy Duty Tool Head Jack Bolt
• FW Arms Swage Station Foot
• Carbide Trimmer Die
• FW ARMS Decapper
• Carbide Sizing Die
• Trimmer Xpress
• Machine Cover
• 2nd Guide Rod
• Machine Guard
• Offload System
* fully equipped $8,909.95

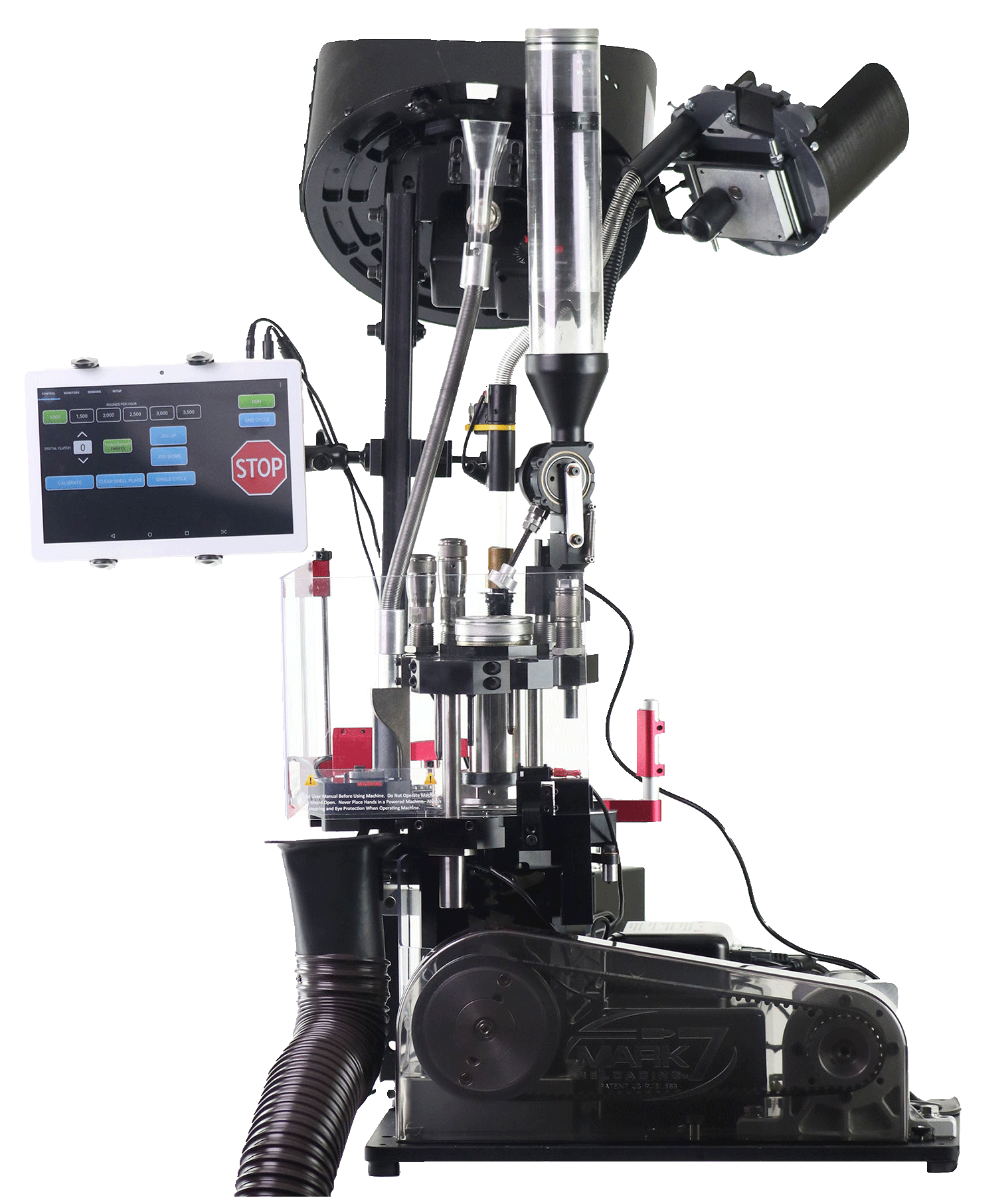

Loading (Without Priming)
Starting at $8,874.95
Automated Evolution Commercial
No Priming
14” Case Feeder
Mr. Bullet Feeder Pro
Digital Powder Measure
Sensors*
($924.85)
• Primer Orientation Sensor
• Powder Check
• BulletSenseTM
Accessories*
($1,044.75)
• Heavy Duty Tool Head Jack Bolt
• Ultimate Die Pack
• Machine Cover
• 2nd Guide Rod
• Machine Guard
• Offload System
*fully equipped $10,844.55
Priming
Starting at $9,149.95
Automated Evolution Commercial
Automated Priming
14” Case Feeder
Sensors*
($324.95)
• Primer Orientation Sensor
Accessories*
($780.75)
• Heavy Duty Tool Head Jack Bolt
• Carbide Sizing Die
• Machine Cover
• 2nd Guide Rod
• Machine Guard
• Offload System
*fully equipped $10,255.65

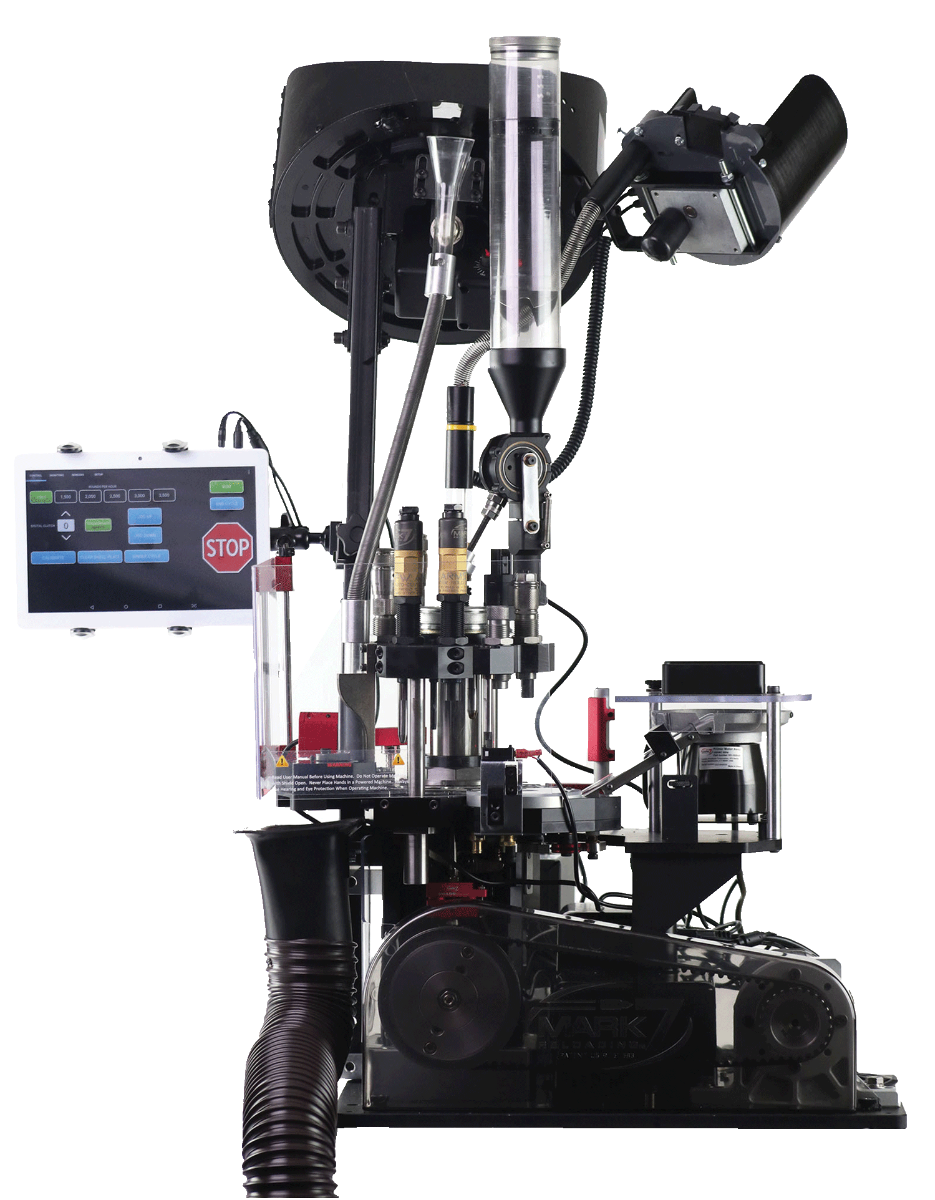

Full Loading
Starting at $10,999.95
Automated Evolution Commercial
Automated Priming
14” Case Feeder
Mr. Bullet Feeder Pro
Digital Powder Measure
Sensors*
($1,349.75)
• Primer Orientation Sensor
• DecapSenseTM
• SwageSenseTM
• Powder Check
• BulletSenseTM
Accessories*
($1,044.75)
• Heavy Duty Tool Head Jack Bolt
• Ultimate Die Pack
• Offload System
• Machine Cover
• 2nd Guide Rod
• Machine Guard
* fully equipped $13,394.45

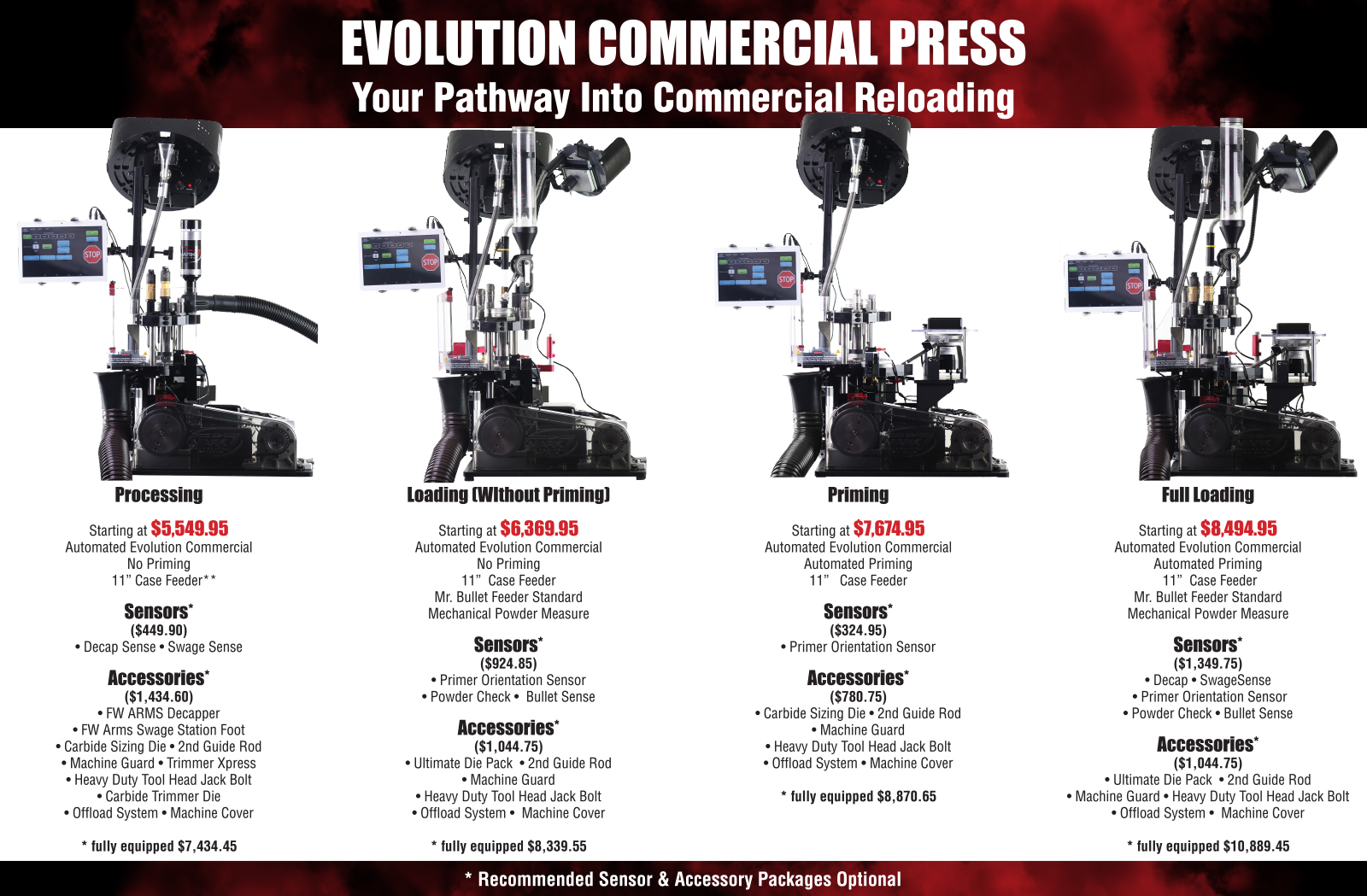

Processing
Loading (Without Priming)
Priming
Full Loading
Starting at $5,549.95
Automated Evolution Commercial
No Priming
11" Case Feeder
Starting at $6,369.95
Automated Evolution Commercial
No Priming
11” Case Feeder
Mr. Bullet Feeder (Standard)
Mechanical Powder Measure
Starting at $7,674.95
Automated Evolution Commercial
Automated Priming
11” Case Feeder
Starting at $8,494.95
Automated Evolution Commercial
Automated Priming
11” Case Feeder
Mr. Bullet Feeder (Standard)
Mechanical Powder Measure
Sensors*
($449.90)
• SwageSenseTM
• DecapSenseTM
Sensors*
($924.85)
• Primer Orientation Sensor
• Powder Check
• BulletSenseTM
Sensors*
(324.95)
• Primer Orientation Sensor
Sensors*
($1,349.75)
• Primer Orientation Sensor
• SwageSenseTM
• DecapSenseTM
• Powder Check
• BulletSenseTM
Accessories*
($1.434.60)
• Heavy Duty Tool Head Jack Bolt
• FW Arms Swage Station Foot
• Carbide Trimmer Die
• FW ARMS Decapper
• Carbide Sizing Die
• Trimmer Xpress
• Machine Guard
• 2nd Guide Rod
• Offload System
• Machine Cover
Accessories*
($1,044.75)
• Heavy Duty Tool Head Jack Bolt
• Ultimate Die Pack
• Machine Cover
• 2nd Guide Rod
• Machine Guard
• Offload System
Accessories*
($780.75)
• Heavy Duty Tool Head Jack Bolt
• Carbide Sizing Die
• Machine Cover
• 2nd Guide Rod
• Machine Guard
• Offload System
Accessories*
($1.044.75)
• Heavy Duty Tool Head Jack Bolt
• Ultimate Die Pack
• Offload System
• Machine Cover
• 2nd Guide Rod
• Machine Guard
*fully equipped $7,434.45
*fully equipped $8,339.55
*fully equipped $8,870.65
*fully equipped $10,889.45
*Recommended Sensor & Accessory Packages Optional
*Recommended Sensor & Accessory Packages Optional
CONFIGURE YOUR PRESS FOR JUST WHAT YOU NEED
The Evolution Commercial Press is built to be easily configured for brass processing only, for loading with pre-primed brass, for priming, or for full loading capabilites. Order your Evolution Commercial Press with only the functionality vou need and retain the ability to upgrade for full reloading whenever vou like!
Whether you are loading tens of thousands of rounds of ammunition per day or processing brass for resale, Mark 7's 10 Stage Evolution® Commercial Progressive Press has you covered. The Evolution Commercial platform supports 16 calibers from 380 Auto up to 308 Win and can produce up to 3500 rounds per hour at maximum speed. Switching between calibers is fast and easy using Mark 7's Caliber Conversion Kits.
The Evolution Commercial comes complete for continuous loading with an Onboard Collating Primer System, 11" Case Feeder, Mr.Bullet Feeder® (Standard), and Mechanical Powder Measure. The System comes standard with a digital clutch & Torque Sense™ integrated, and Mark 7 offers a full suite of cutting-edge sensors designed to halt press operation at the first sign of trouble, preventing damage and downtime.
FEATURES
- Outputs up to 3500 Rounds Per Hour
- 10-Station Tool Head, Accepts Most Dies
- Onboard Automated Primer Collator
- 11" Case Feeder (included as standard)
- Mr. Bulletfeeder (included as standard)
- Mechanical Powder Measure
- Fully Automated, Digital Control
- Commercial Grade, CNC Steel & Aluminum
- Supports 1-Pass Rifle/Pistol Loading
- Works on New & Once-Fired Brass
- Ultra-Smooth Direct Drive Powertrain
- Precision Shell Plate Movement
- Free Downloadable Software Upgrades
- Support & Tech Help Included
- 1-Year Manufacturer's Warrant
AVAILABLE SENSORS & ACCESSORIES
- DecapSense™
- SwageSense™
- Primer Orientation Sensor
- PowderCheck™ Sensor
- BulletSense™
- Remote Stop
- Machine Guard w/ Auto-Stop Feature
Why Choose Mark 7?
- Comprehensive and affordable in-house and field training available to make YOU the expert.
- Quick-change between calibers at a fraction of the cost of other commercial loading machines.
- Extremely small footprint, and the system works with most industry standard dies.
- 1-year Limited Warranty, with the ability to add on a powerful Service Agreement.
- Mark 7's Master Technicians are only a phone call away for support of your equipment.
- Additional Calibers are always being added to satisfy market demand.
- Mark 7 products are backed by Lyman® Products, with over 140 years in the firearms & ammo industry.
Specs and Dimensions
The Mark 7 Evolution Commercial comes mounted on a machined solid aluminum baseplate with assembled dimensions of 48” high, 19” wide, and 14” deep (122cm x 48cm x 36cm). Some assembly is required. The Evolution Commercial Reloading Platform weighs approximately 125 lbs. (57 kg). The press ships in an IPCC-rated wooden crate for maximum protection in transit.
Custom Configurations Available!
Our sales department would be happy to discuss configuration options with you at the number or email address below.
3,500 Rounds Per Hour
Compatible with Mark 7® Autodrive & Accesories
Onboard Primer Collator for Continuous Feed Operation
Microprocessor Monitored & Controlled
Works on New and Re-Manufactured Brass
Smooth & Precise Gear-Based Movement & Shell Plate Indexing
Top of the line automated ammunition loading platform for Customers
Looking for a top quality, commercial grade loading machine at an affordable price? The Evolution™ Commercial press is the one for you! Whether you are loading tens of thousands of rounds of ammunition or processing brass for resale, the ten station Evolution™ Commercial press has you covered.
Its compact design takes up a minimal amount of shop space yet produces quality ammunition rivaling machines costing many times as much. The press features a completely integrated press and drive mechanism that is fully automated with digital and computer control. Our full array of integrated sensors warns you of any potential problems before they can cause damage to the machine and costly downtime.
Add Some
Magic
Mark 7® Sensors are truely the "Magic in the Machine."
Our famous Mark 7® Sensors allow for precise press performance. When you add a sensor to your order, it will be installed onto your Evolution™ Commercial press and ready upon arrival.
Must Have
Gear
The official Mark 7® Accessories built for your Evolution™ Commercial Press
Standard Features
-
Completely integrated reloading press and drive mechanism - fully automated, digital, and computer controlled
-
Hardened alloy steel and anodized aluminum construction
-
Onboard primer collator
-
Ultra smooth and precise, gear-based machine movement and shell plate indexing
-
Mark 7® sensors can be easily integrated
-
Up-to 3500 rounds per hour
-
10 station toolhead utilizing off-the-shelf reloading dies
-
Microprocessor monitored and controlled
-
Features monitored by computer
-
System works on new AND remanufactured brass
-
Downloadable machine firmware and software upgrades for life
-
Supports a variety of accessories including today’s off-the-shelf reloading dies
-
Pre-assembled and shipped ready-to-use
-
CNC grade planetary gearbox
-
Full 1 year warranty
Standard Equipment
- 14” Case Feeder
- Bullet Feeder Pro
- Digital Powder Measure
- Onboard Collated Priming
- Ultra smooth, precise, gear-based machine movement and shell plate indexing
- Supports one-pass rifle/pistol processing and loading
- Works on new AND used brass
- Precision CNC machined aluminum and steel
- Compatible with Mark 7® sensors and accessories
- Fully supported Mark 7® community and technical help included
PLEASE NOTE: Dies are not included with the Evolution™ Commercial Package and must be purchased separately.
Available Calibers
9mm/.38 Super (#101-1193-01)
40 S&W (#101-1193-02)
38 Special /.357 Mag (#101-1193-03)
45 ACP (Large Primer) (#101-1193-04)
223 Remington (#101-1193-05)
308 Winchester (#101-1193-06)
38 Super Comp (#101-1193-07)
380 ACP (#101-1193-08)
10mm (#101-1193-09)
45 ACP (Small Primer) (#101-1193-10)
44 Magnum /.45 Long Colt (#101-1193-11)
300 AAC (#101-1193-12)
6.5 Creedmoor (#101-1193-13)
| SKU | 101-1177 |
|---|---|
| Number of Die Stations | 10 |
| Caliber Range | 380 Auto to 308 win |
| Rounds per Hour | 3,500 |
| Drive System | auto |
| Priming System | standard stacked priming |
| Type of Case Feeder | 11" case feeder |
| Type of Powder Measure | mechanical powder measure |
| Digitally Controlled | yes |
| Machine Weight | 200 lbs |
- Tool head size: The Dillon presses have 5 where the Evolution™ has 10.
- The Evolution™ has CNC and Billet construction.
- The Evolution™ is easier to automate and works better when automated: Dillon presses were not made to be automated.
- The Evolution™ offers more sensor options if you choose to automate.
Yes, when used with an Evolution™ Autodrive.
The ease and time required to change calibers depends on both your primer size and level of experience. Small calibers can take as little as 30 minutes or less with all necessary accessories. Small to large caliber or large to small caliber changes could take up to an hour depending on the number of pieces changed.
No special tools are needed, but a good Allen wrench set is recommended. It will take about an 1 hour to 90 minutes to get the press set up* meaning the press is physically set up but not ready to load on: that will take another 1 to 2 hours. The necessary step are:
- Install the sensors
- Set up and adjust the bullet feeder and case feeder
- Set dies
- Set the sensors
- Set powder measure charge, etc...
In all, you should expect to spend approximately 90 minutes to set up a manual press, or approximately 3 or more hours for an automated press with sensors.
Yes, provided that they are standard thread dies.
Very easy: Simply install your Evolution™ Autodrive which typically requires 30 - 45 minutes on average.
