Revolution Configurations
Processing<br> (#101-1176-01)
Loading without Priming<br> (#101-1176-02)
Priming<br> (#101-1176-03)
Full Loading<br> (#101-1176-04)

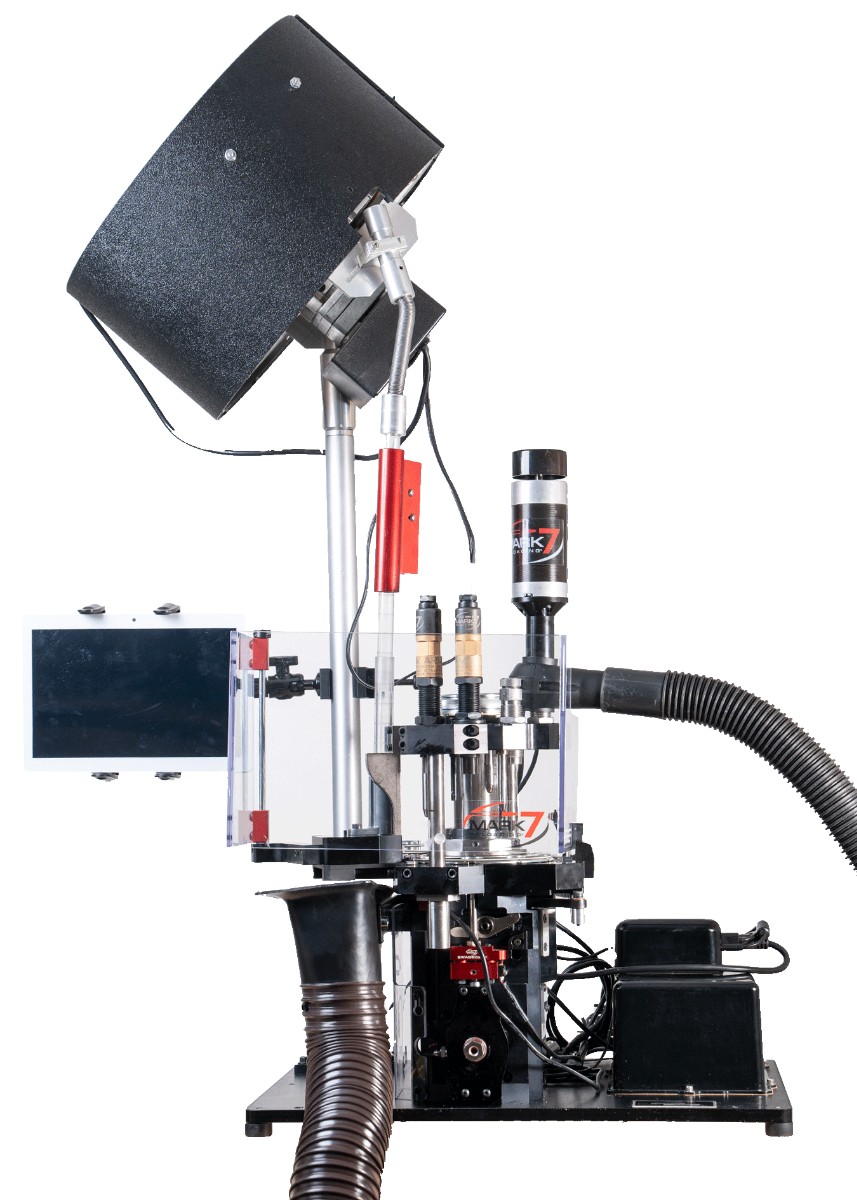

Processing
Starting at
$8,749.95
Revolution - Direct Drive
No Priming
14” Case Feeder
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• DecapSense
• SwageSense
Accessories*
($1,009.65)
• FW ARMS Decapper
• FW ARMS Swage Station Foot
• Carbide Sizing Die
• Heavy Duty Tool Head Jack Bolt
• Trimmer xPress
• Carbide Trimmer Die
• Machine Cover
• Tool Head Stand
*Fully Equipped
$9,759.60
Part #101-1176-01

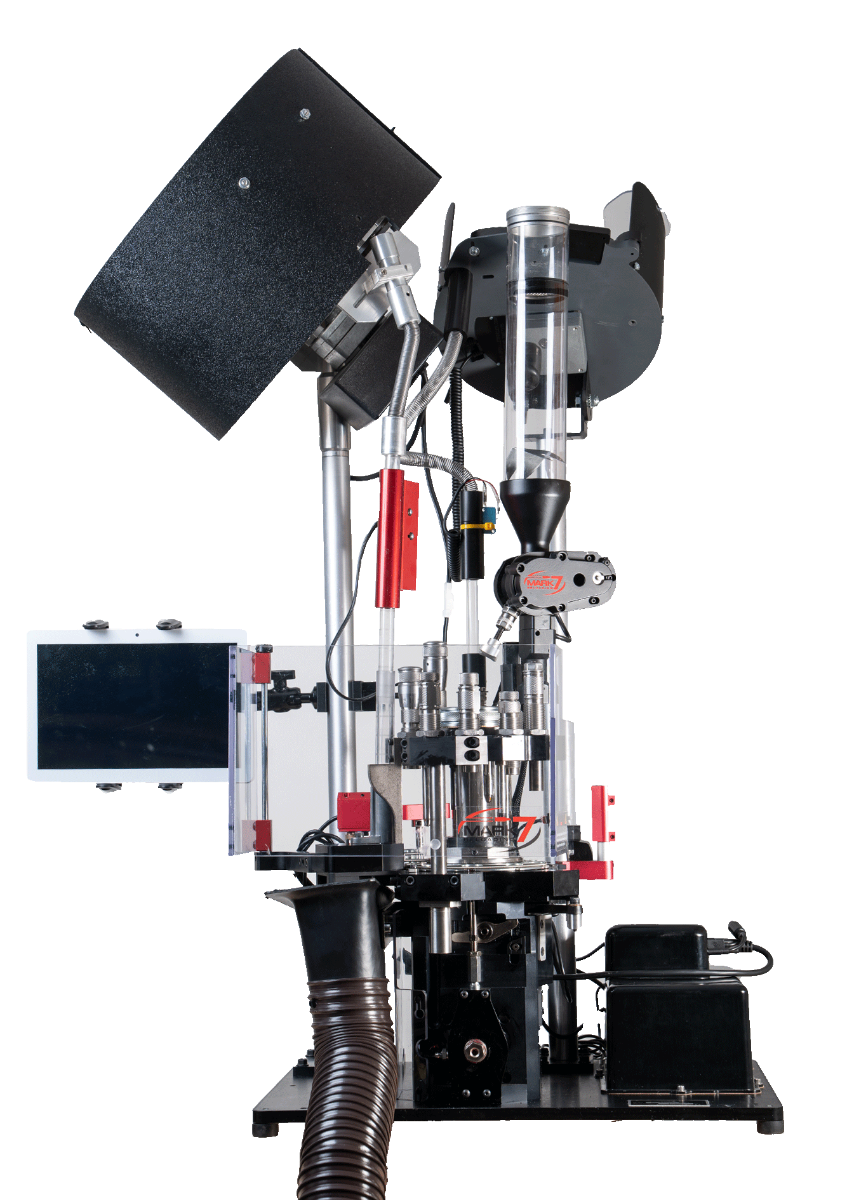

Loading (Without Priming)
Starting at
$10,674.95
Revolution - Direct Drive
No Priming (Spacer Housing Installed)
14” Case Feeder
Digital Powder Measure
Mr. Bullet Feeder Pro
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• Powder Check
• Bulletsense
Accessories*
($619.80)
• Ultimate Die Pack
• Heavy Duty Tool Head Jack Bolt
• Machine Cover
• Tool Head Stand
*Fully Equipped
$11,294.75
Part #101-1176-02

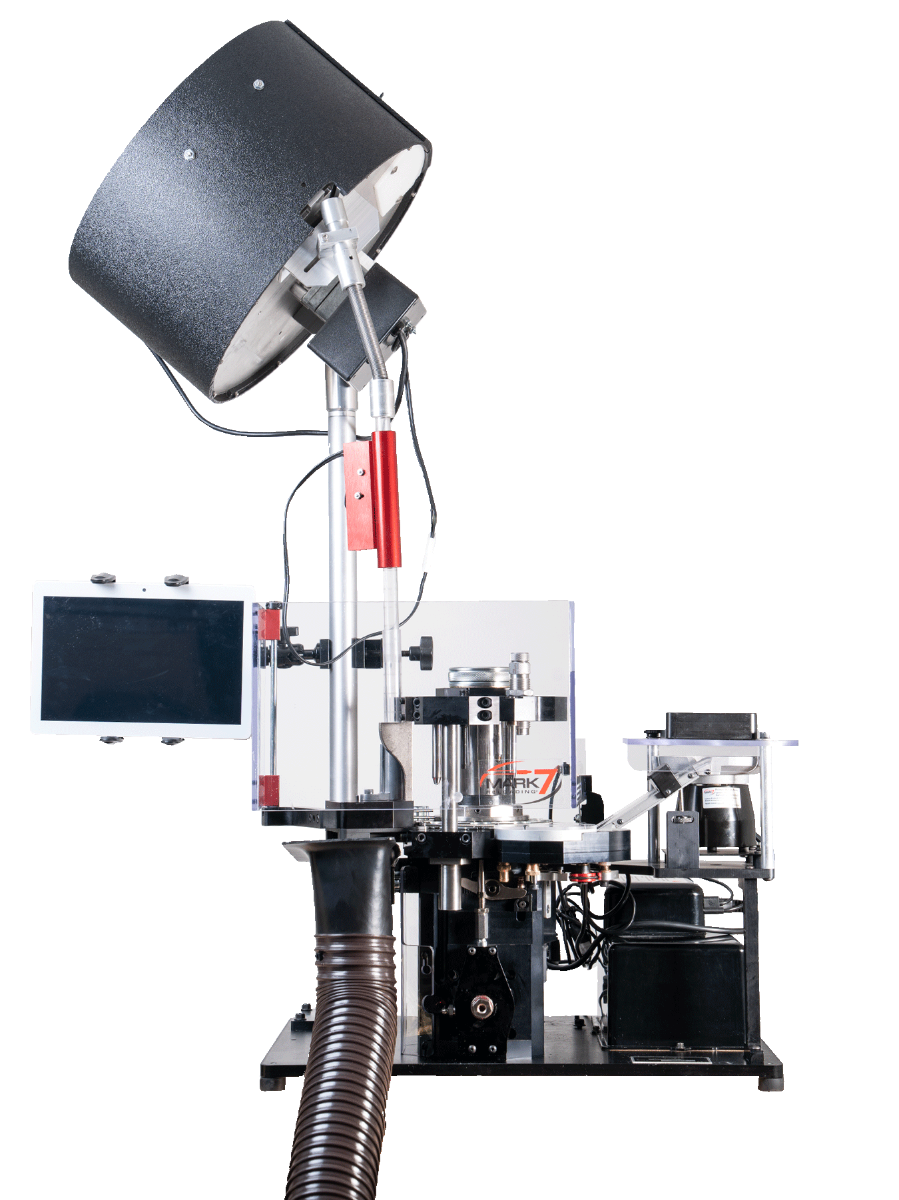

Priming
Starting at
$10,874.95
Revolution - Direct Drive
Automated Priming
14” Case Feeder
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• SwageSense
Accessories*
($345.80)
• Carbide Sizing Die
• Heavy Duty Tool Head Jack Bolt
• Machine Cover
• Tool Head Stand
*Fully Equipped
$11,045.75
Part #101-1176-03

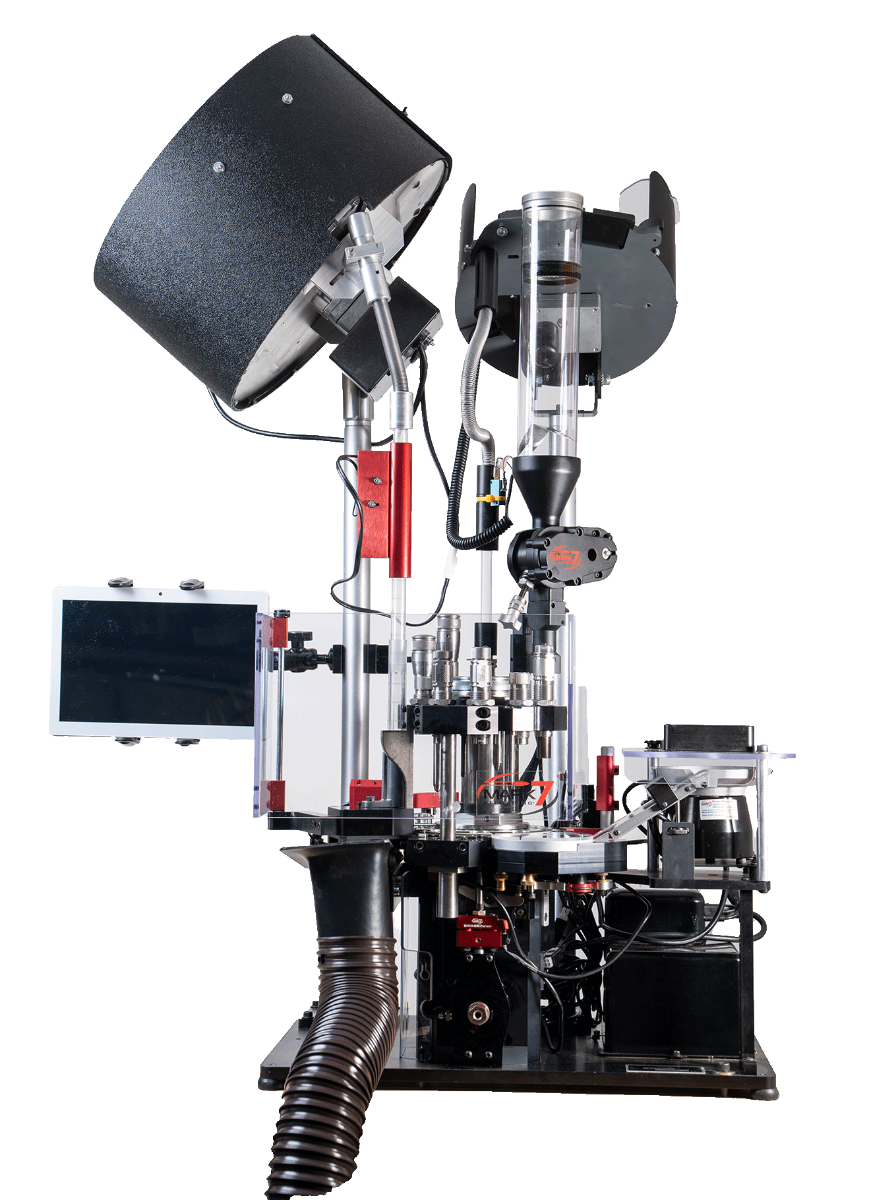

Full Loading
Starting at
$13,249.95
Revolution - Direct Drive
Automated Priming
14” Case Feeder
Digital Powder Measure
Mr. Bullet Feeder Pro
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• Decap Sense
• Swage Sense
• Powder Check
• Bulletsense
Accessories*
($554.85)
• Ultimate Die Pack
• Heavy Duty Tool Head Jack Bolt
• Machine Cover
• Tool Head Stand
*Fully Equipped
$13,869.75
Part #101-1176-04
Processing
Loading (Without Priming)
Priming
Full Loading
Starting at
$8,749.95
Revolution Direct Drive
No Priming (Spacer Housing Installed)
14" Case Feeder
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• DecapSense
• SwageSense
Starting at
$10,674.95
Revolution - Direct Drive
No Priming (Spacer Housing Installed)
14” Case Feeder
Digital Powder Measure
Mr. Bullet Feeder Pro
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• Powder Check
• Bulletsense
Starting at
$10,699.95
Revolution - Direct Drive
Automated Priming
14” Case Feeder
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• SwageSense
Starting at
$13,249.95
Revolution - Direct Drive
Automated Priming
14” Case Feeder
Digital Powder Measure
Mr. Bullet Feeder Pro
Included Sensors and Accessories
• Offload System
• Remote Stop
• Primer Orientation Sensor
• DecapSense
• SwageSense
• Powder Check
• Bulletsense
Accessories*
($1009.65)
• FW ARMS Decapper
• FW Arms Swage Station Foot
• Carbide Sizing Die
• Heavy Duty Tool Head Jack Bolt
• Trimmer Xpress
• Carbide Trimmer Die
• Machine Cover
• Tool Head Stand
Accessories*
($804.85)
• Ultimate Die Pack
• Heavy Duty Tool Head Jack Bolt
• Machine Cover
• Tool Head Stand
Accessories*
($345.80)
• Carbide Sizing Die
• Heavy Duty Tool Head Jack Bolt
• Machine Cover
• Tool Head Stand
Accessories*
($619.80)
• Ultimate Die Pack
• Heavy Duty Tool Head Jack Bolt
• Machine Cover
• Tool Head Stand
*Fully Equipped
$9,759.60
*Fully Equipped
$11,294.75
*Fully Equipped
$11,045.75
*Fully Equipped
$13,869.75
Part #101-1176-01
Part #101-1176-02
Part #101-1176-03
Part #101-1176-04
*Recommended Accessory Package Optional
*Recommended Accessory Packages Optional

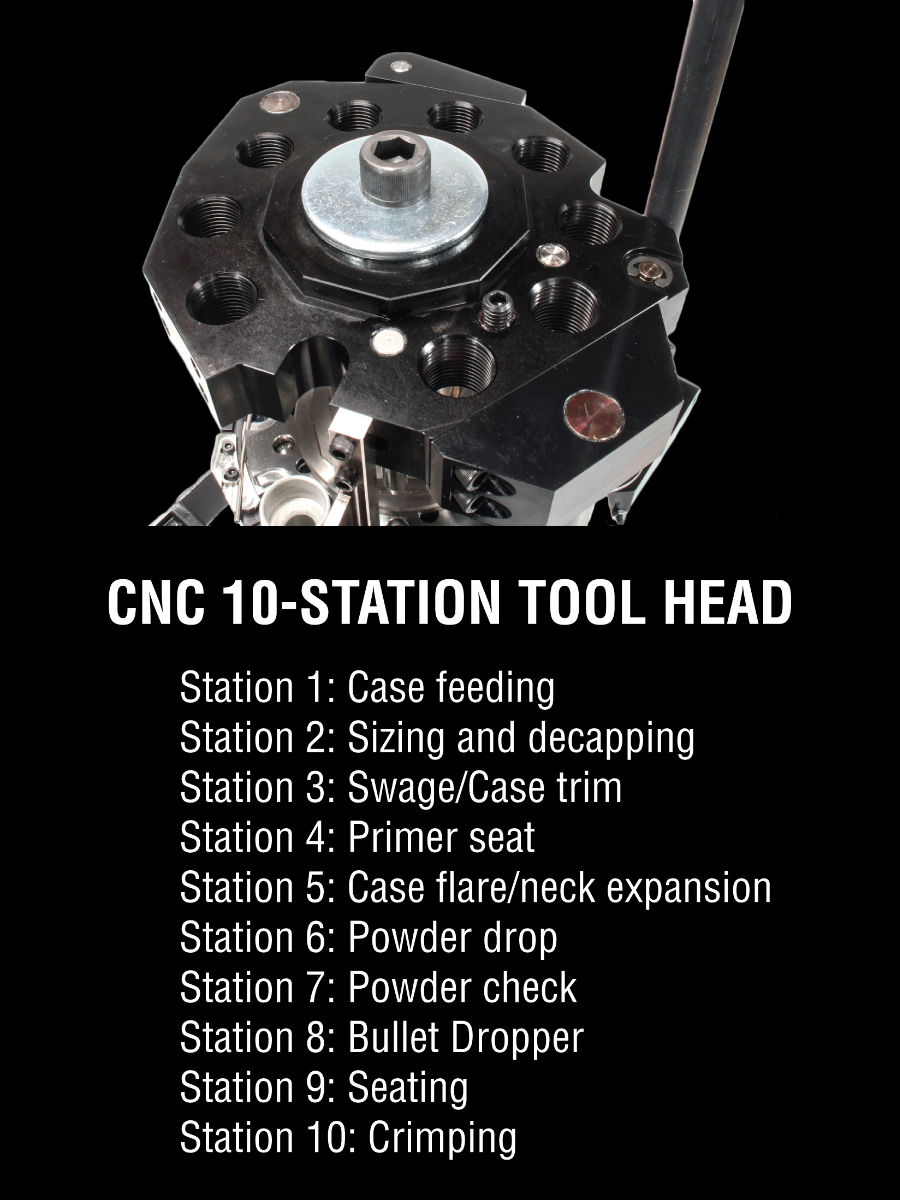

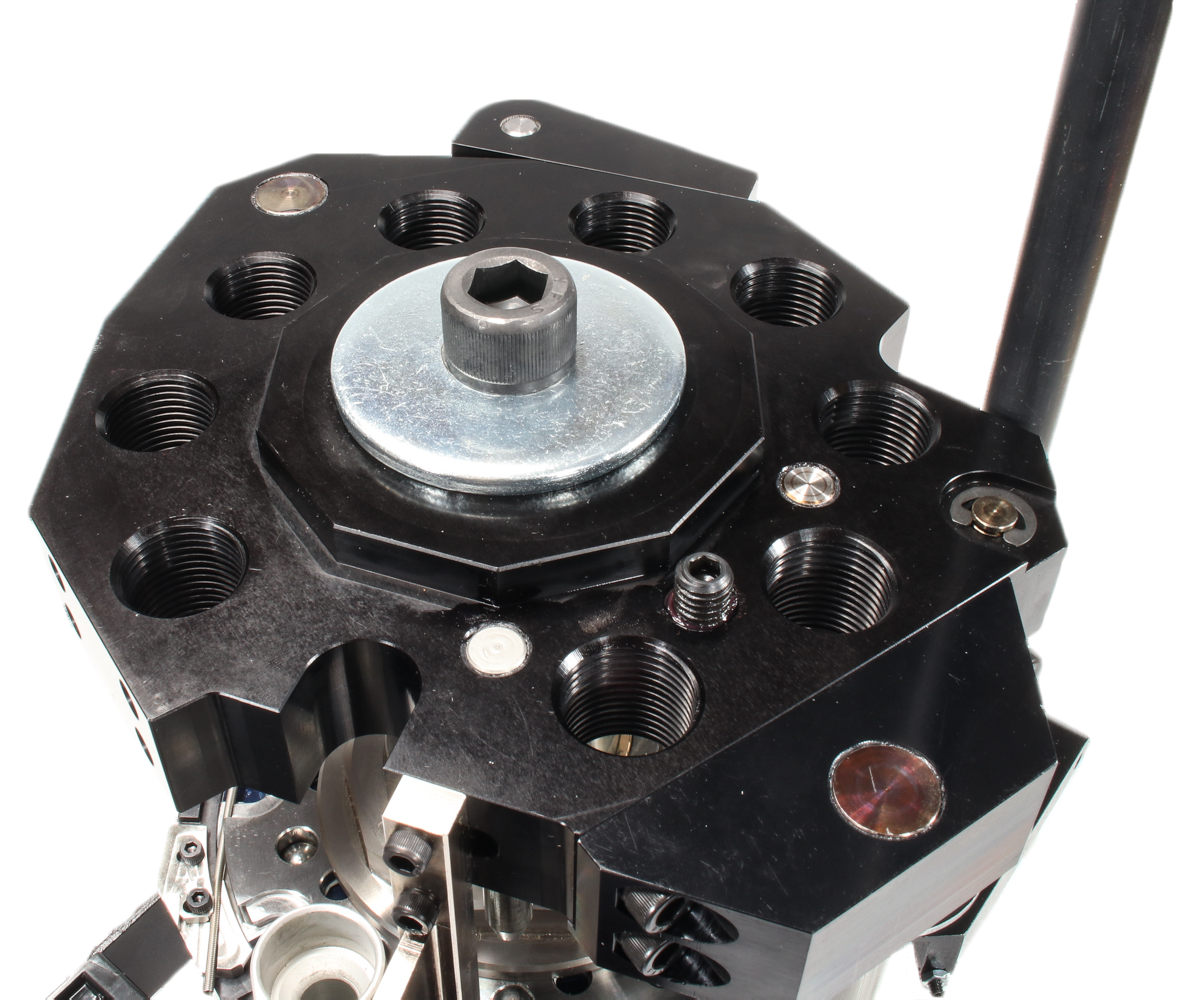

CNC Billet Tool Head
Station 1: Case Feeding
Station 2: Sizing and Decapping
Station 3: Swage/Case trim
Station 4: Primer Seat
Station 5: Case Flare/Neck Expansion
Station 6: Powder Drop
Station 7: Powder Check
Station 8: Bullet Dropper
Station 9: Seating
Station 10: Crimping

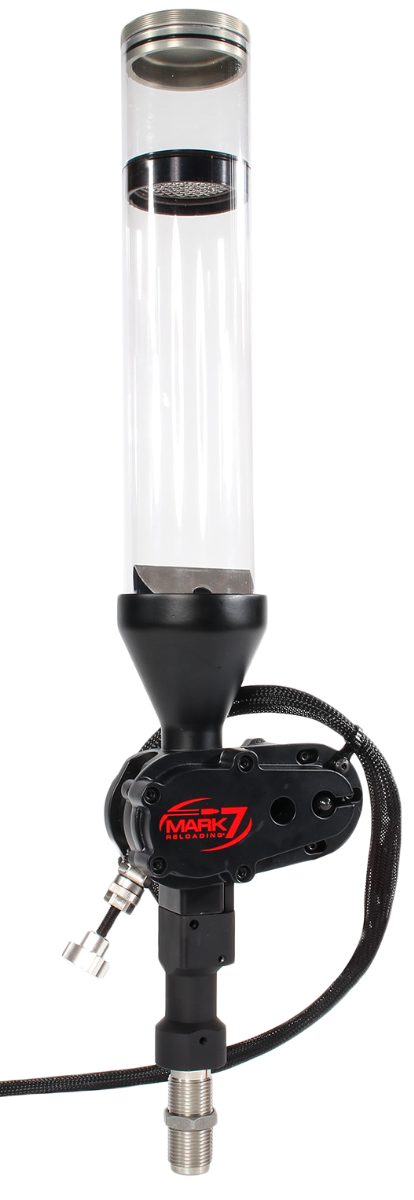

Motorized Powder Measure
• Accuracy ±0.1 grain
• 5,000 grain capacity
• Integrated powder screen
• Proven drum and metering cylinder design
• Electronic double charge protection
• Optimized for high speed operation
• Works smoothly with most flake and spherical powder types
• High capacity powder reservoir
• Manual setup mode for quick charge adjustment

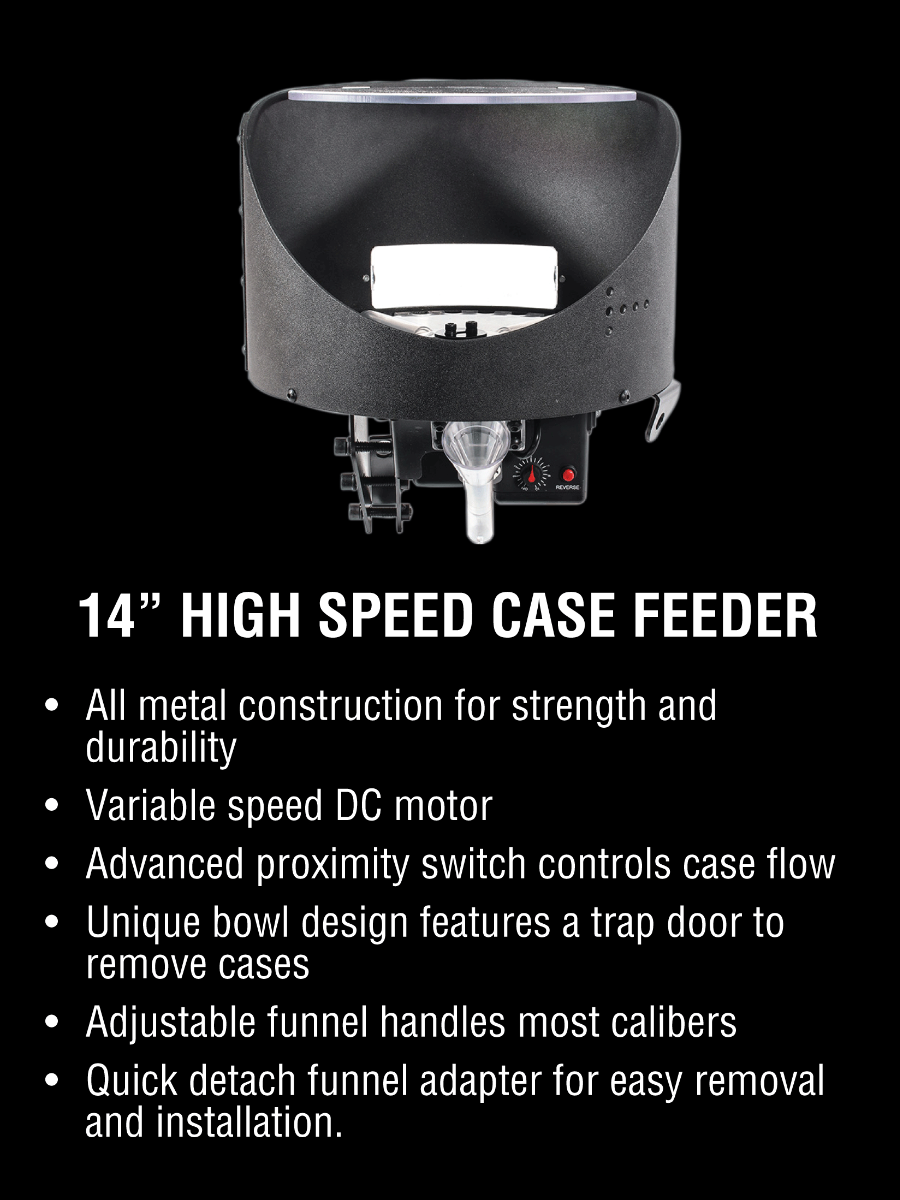

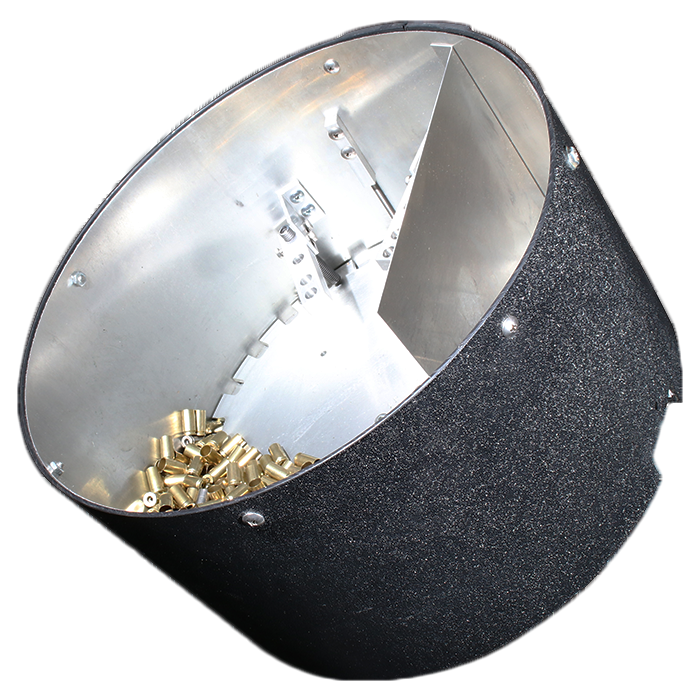

14" High Speed Case Feeder
• Industrial grade 14" Case Feeder supplies cases quickly and reliably
• Large capacity bowl means less frequent refills
• Can easily be configured for different calibers

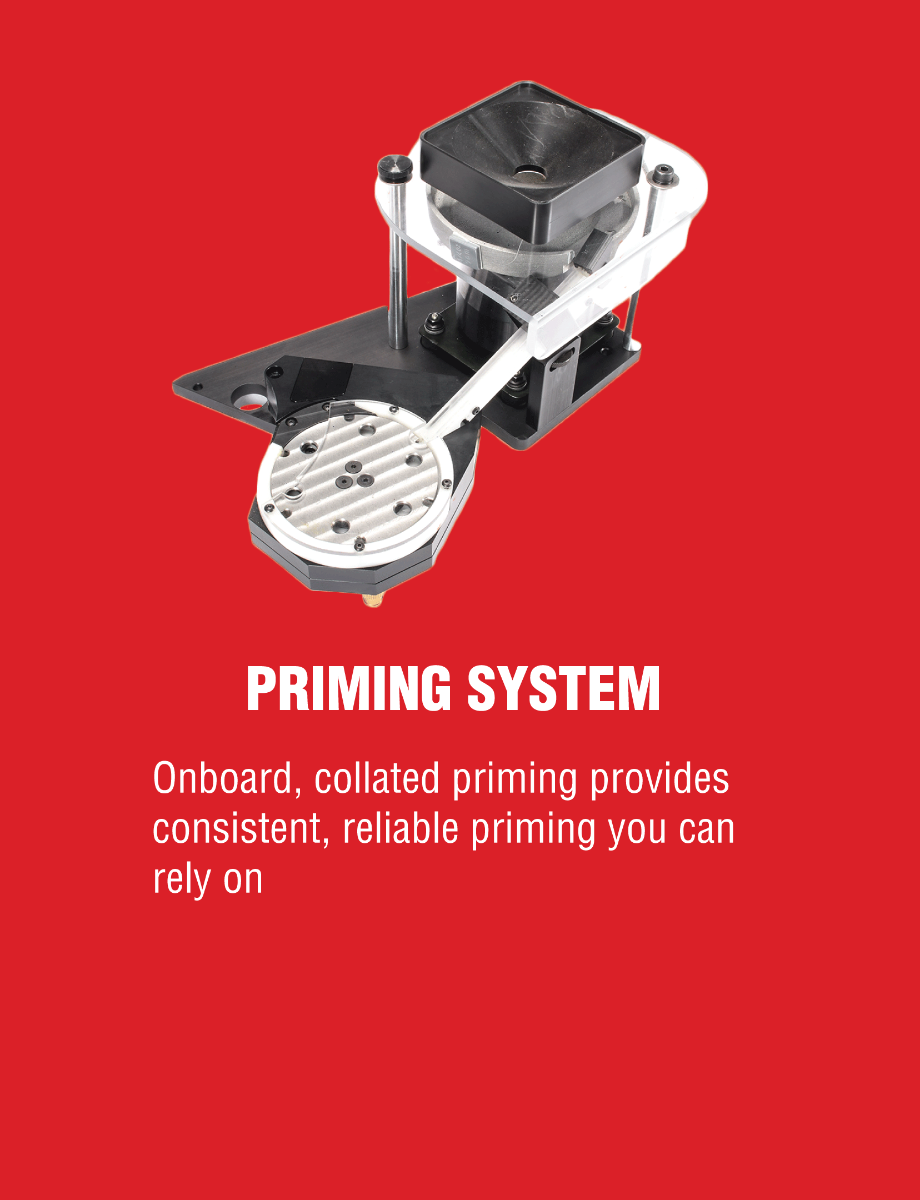

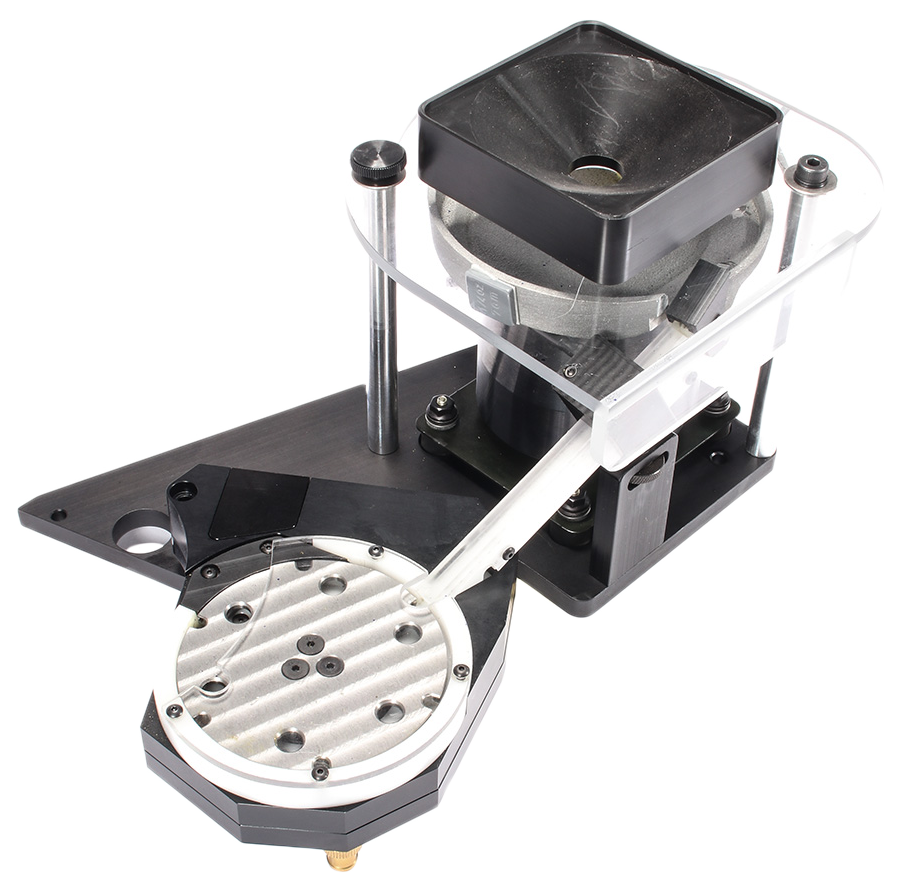

Priming System
Onboard collated priming provides consistent, reliable priming you can depend on

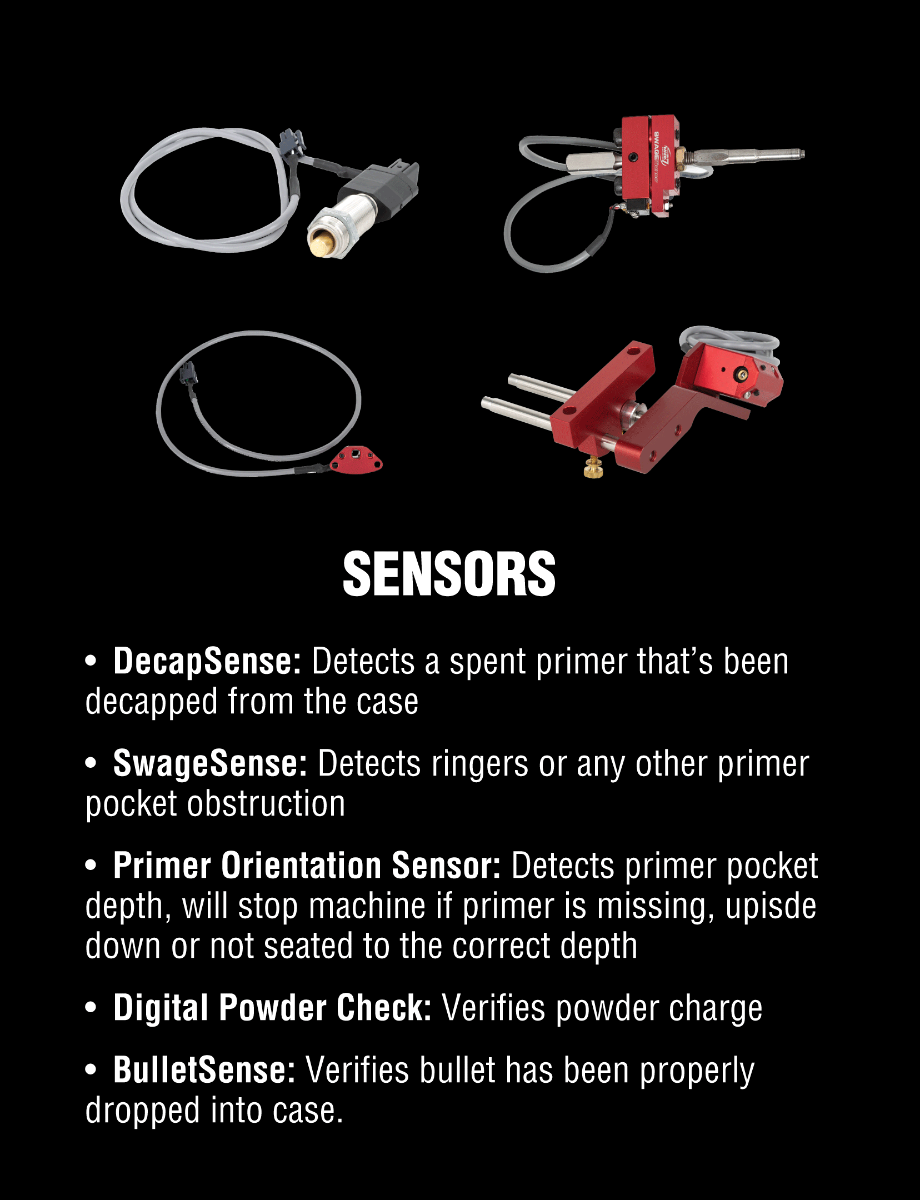

Sensors

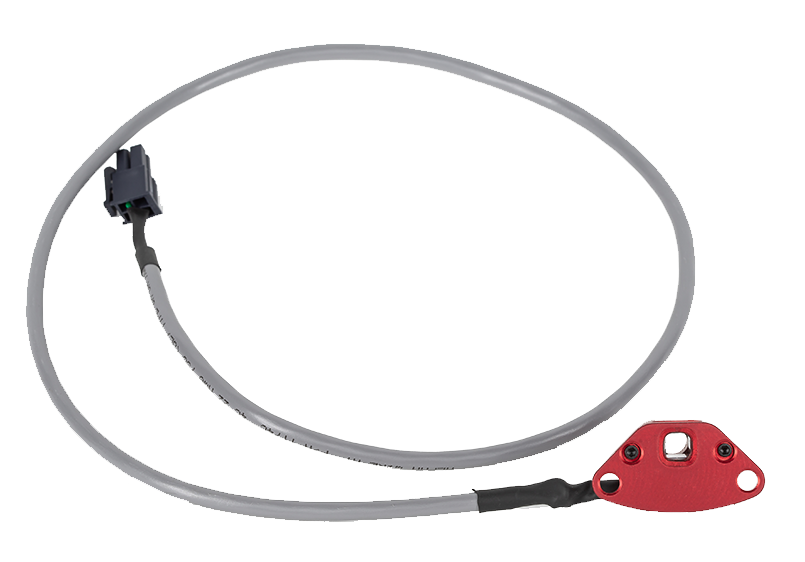

• DecapSense: Detects a spent primer that’s been decapped from the case
• SwageSense: Detects ringers or any other primer pocket obstruction
• Primer Orientation Sensor: Detects primer pocket depth, will stop machine if primer is missing, upisde down or not seated to the correct depth

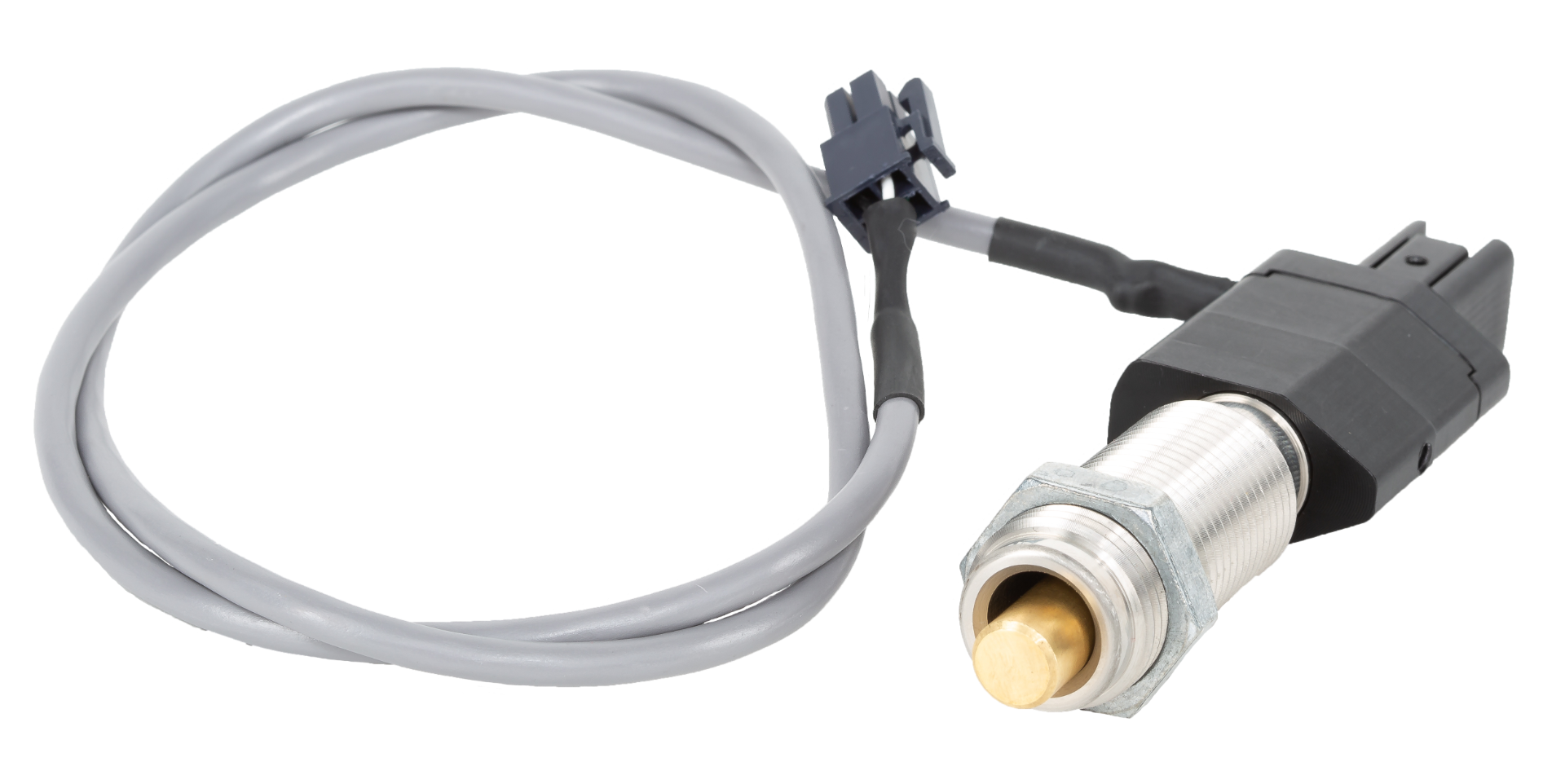

• Digital Powder Check: Verifies powder charge

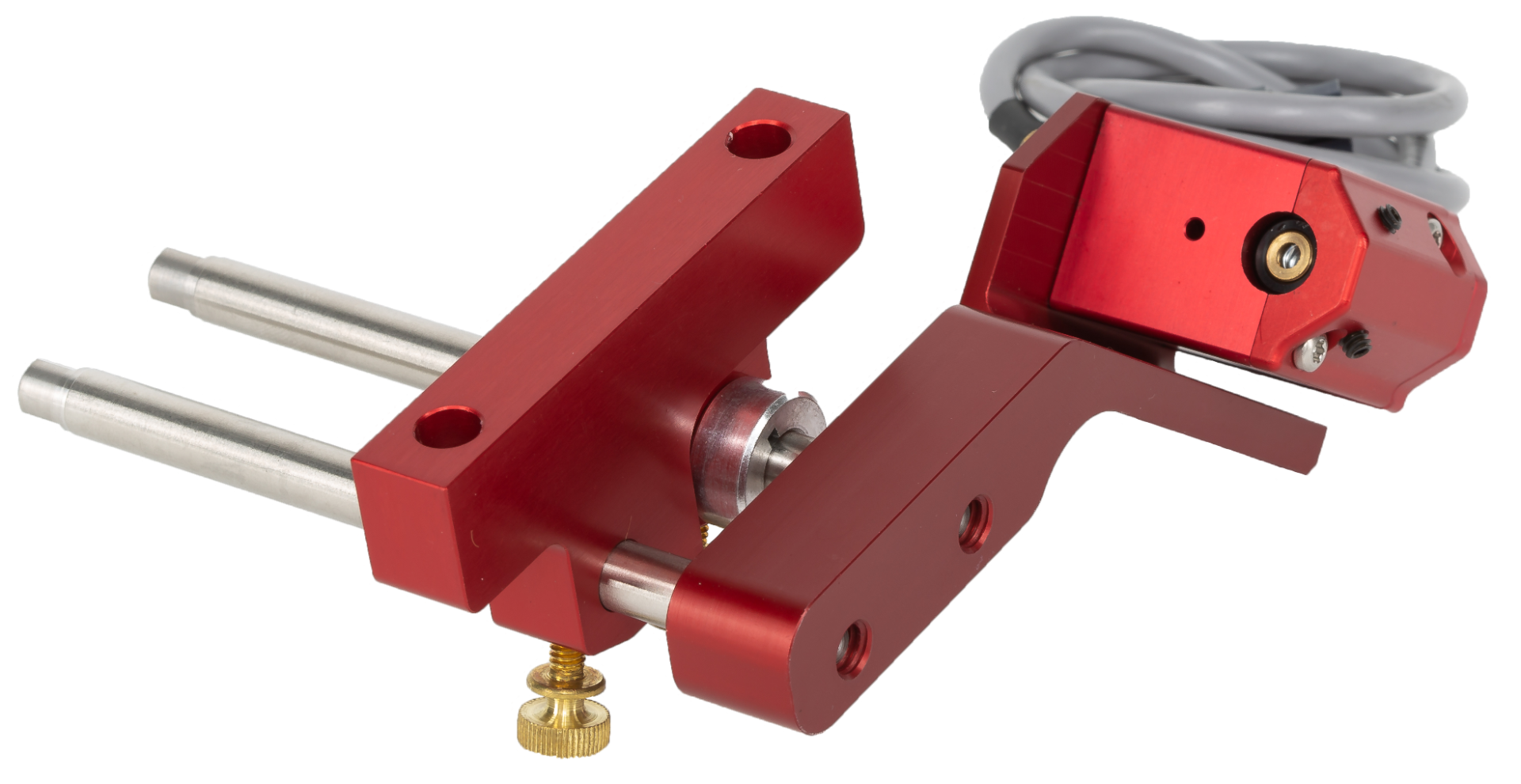

• BulletSense: Verifies bullet has been properly dropped into case.

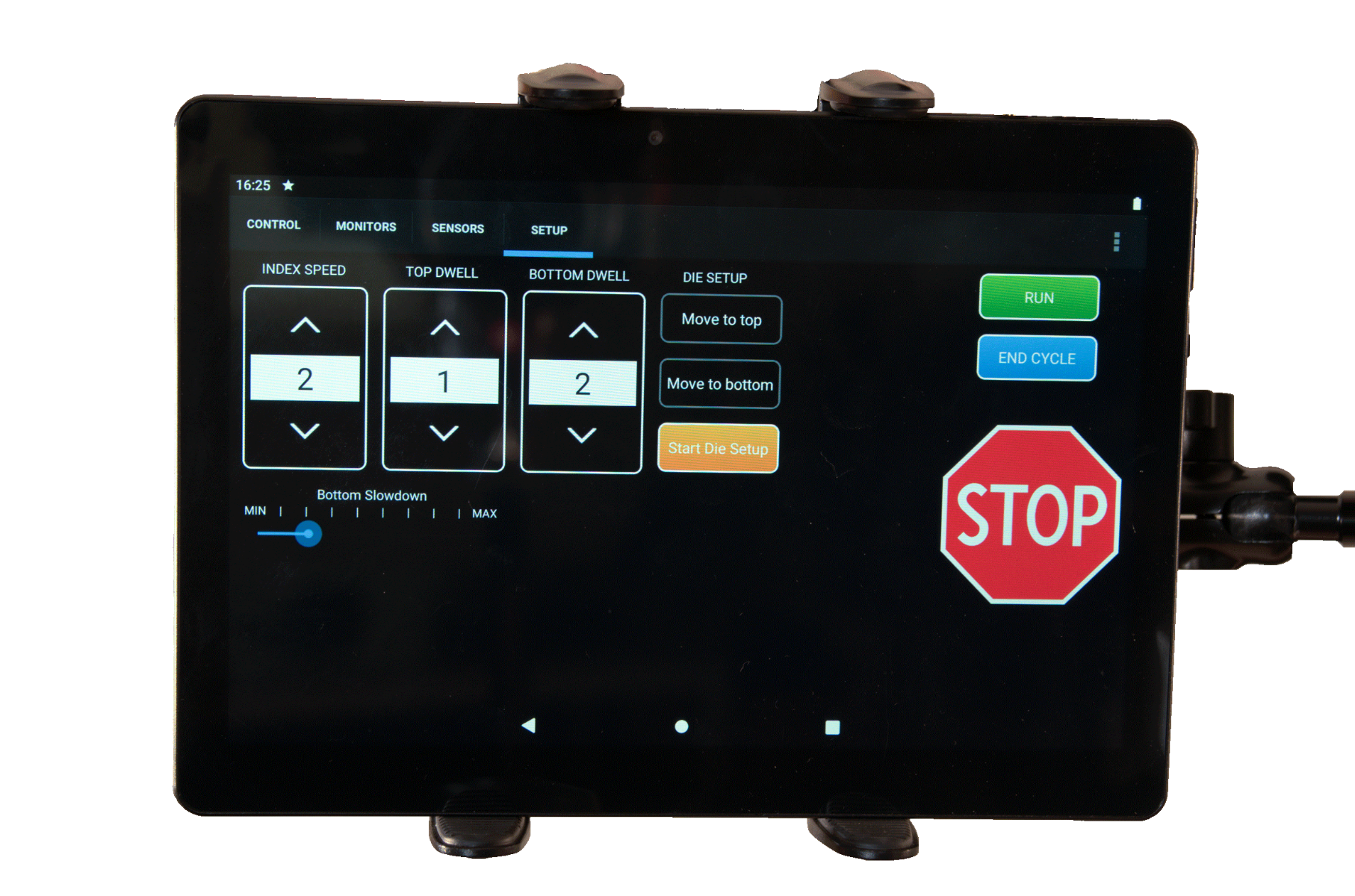

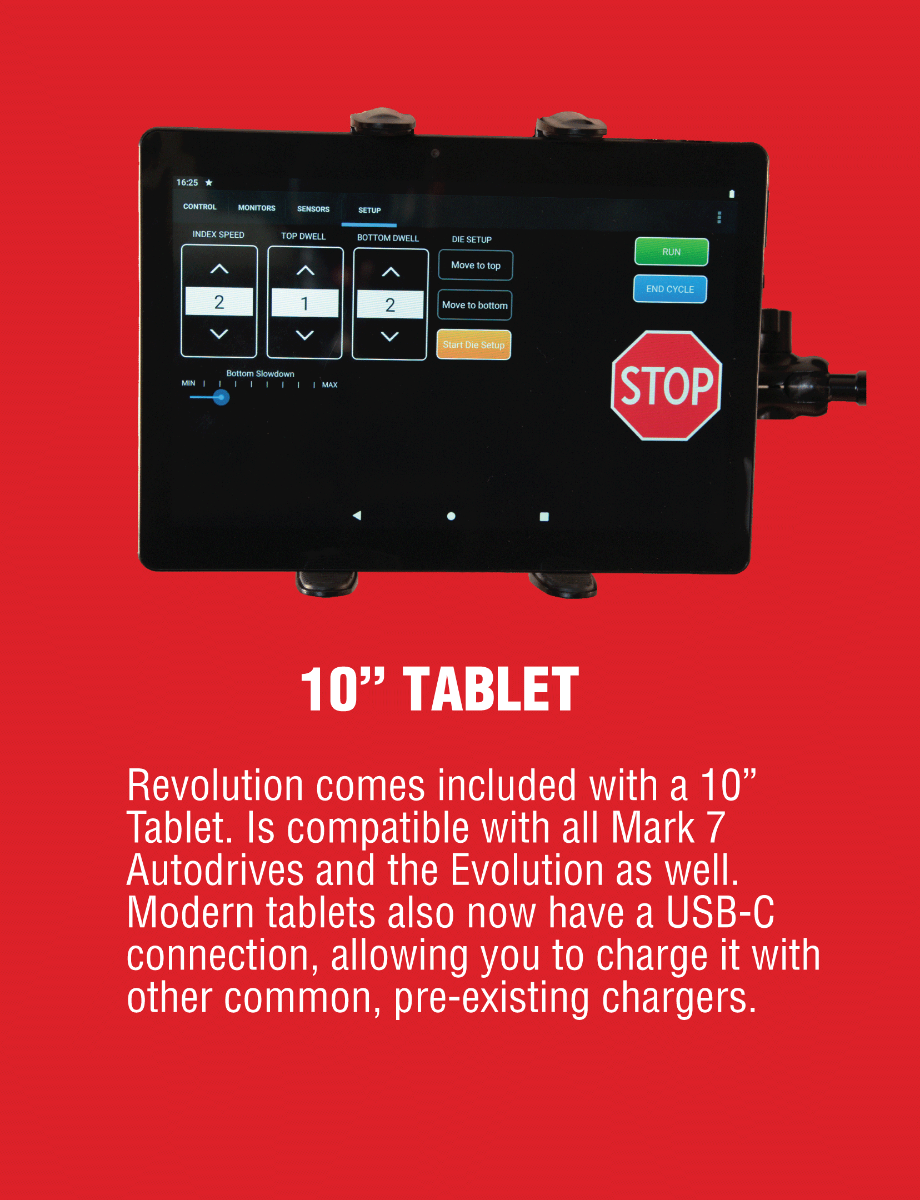

10" Tablet
• 10" HD Display
• On the fly adjustments including speed, dwell & index
• Bottom slow down
• Display for speed and rounds made
• Can turn sensors on and off
Whether you are loading tens of thousands of rounds of ammunition per day or processing brass for resale, Mark 7’s 10 Station Revolution® Progressive Press has you covered. The Revolution platform supports 16 calibers from 380 Auto up to 308 Win and can produce up to 3500 rounds per hour at maximum speed. Switching between calibers is fast and easy using Mark 7’s Caliber Conversion Kits.
The Revolution comes complete for continuous loading with an Onboard Collating Primer System, 14” Case Feeder, Mr. Bullet Feeder Pro®, and Digital Powder Measure. The Direct-Drive System comes standard with a digital clutch & TorqueSenseTM integrated, and Mark 7 offers a full suite of cutting-edge sensors designed to halt press operation at the first sign of trouble, preventing damage and downtime.
FEATURES
- Outputs up to 3500 Rounds Per Hour
- 10-Station Tool Head, Accepts Most Dies
- Onboard Automated Primer Collator
- 14” Case Feeder (included as standard)
- Mr. Bulletfeeder Pro (included as standard)
- Motorized Powder Measure
- Fully Automated, Digital Control
- Commercial Grade, CNC Steel & Aluminum
- Supports 1-Pass Rifle/Pistol Loading
- Works on New & Once-Fired Brass
- Ultra-Smooth Direct Drive Powertrain
- Precision Shell Plate Movement
- Free Downloadable Software Updates
- Support & Tech Help Included
- 1-Year Manufacturer’s Warranty
AVAILABLE SENSORS & ACCESSORIES
- DecapSenseTM
- SwageSenseTM
- Primer Orientation Sensor
- PowderCheckTM Sensor
- BulletSenseTM
- Remote Stop
- Machine Guard with Auto-Stop Feature
Just processing brass?
Order a Revolution Press with only the functionality you need and retain the ability
to upgrade for full reloading whenever you like!
Why Choose Mark 7?
- Comprehensive and affordable in-house and field training available to make YOU the expert.
- Quick-change between calibers at a fraction of the cost of other commercial loading machines.
- Extremely small footprint, and the system works with most industry standard dies.
- 1-year Limited Warranty, with the ability to add on a powerful Service Agreement.
- Mark 7’s Master Technicians are only a phone call away for support of your equipment.
- Additional Calibers are always being added to satisfy market demand.
- Mark 7 products are backed by Lyman® Products, with over 140 years in the firearms & ammo industry.
Specs and Dimensions
The Mark 7 Revolution comes mounted on a machined solid aluminum baseplate with assembled dimensions of 48” high, 20” wide, and 15” deep (122cm x 51cm x 38cm). Some assembly is required. The Revolution Reloading Platform weights approximately 125 lbs. (57 kg). The press ships in an IPCC-rated wooden crate for maximum protection in transit.
3,500 Rounds Per Hour
Compatible with Mark 7® Autodrive & Accesories
Onboard Primer Collator for Continuous Feed Operation
Microprocessor Monitored & Controlled
Works on New and Re-Manufactured Brass
Smooth & Precise Gear-Based Movement & Shell Plate Indexing
Top of the line automated ammunition loading platform
Looking for a top quality, commercial grade loading machine at an affordable price? The Revolution® press is the one for you! Whether you are loading tens of thousands of rounds of ammunition or processing brass for resale, the ten station Revolution® press has you covered. Its compact design takes up a minimal amount of shop space yet produces quality ammunition rivaling machines costing many times as much. The press features a completely integrated press and drive mechanism that is fully automated with digital and computer control. Our full array of integrated sensors warns you of any potential problems before they can cause damage to the machine and costly downtime.
The Revolution® can work with most off-the-shelf reloading dies and supports a variety of accessories.We recommend the Lyman Pro Line Dies that are specifically designed for Mark 7® presses. Super smooth operation, rugged design and cutting-edge technology combine to make this the press for your commercial loading business.
International Customers: Please note that due to ITAR regulations, the Revolution® cannot be sold internationally. Please check out the Evolution Commercial press for international sales.
Add Some
Magic
Mark 7® Sensors are truely the "Magic in the Machine."
Our famous Mark 7® Sensors allow for precise press performance. When you add a sensor to your order, it will be installed onto your Revolution® press and ready upon arrival.
Must Have
Gear
The official Mark 7® Accessories built for your Revolution®
Standard Features
-
Completely integrated reloading press and drive mechanism - fully automated, digital, and computer controlled
-
Hardened alloy steel and anodized aluminum construction
-
Onboard primer collator
-
Ultra smooth and precise, gear-based machine movement and shell plate indexing
-
Mark 7® sensors can be easily integrated
-
Up-to 3500 rounds per hour
-
10 station toolhead utilizing off-the-shelf reloading dies
-
Microprocessor monitored and controlled
-
Features monitored by computer
-
System works on new AND remanufactured brass
-
Downloadable machine firmware and software upgrades for life
-
Supports a variety of accessories including today’s off-the-shelf reloading dies
-
Pre-assembled and shipped ready-to-use
-
CNC grade planetary gearbox
-
Full 1 year warranty
Standard Equipment
- 14” Case Feeder
- Bullet Feeder Pro
- Digital Powder Measure
- Onboard Collated Priming
- Ultra smooth, precise, gear-based machine movement and shell plate indexing
- Supports one-pass rifle/pistol processing and loading
- Works on new AND used brass
- Precision CNC machined aluminum and steel
- Compatible with Mark 7® sensors and accessories
- Fully supported Mark 7® community and technical help included

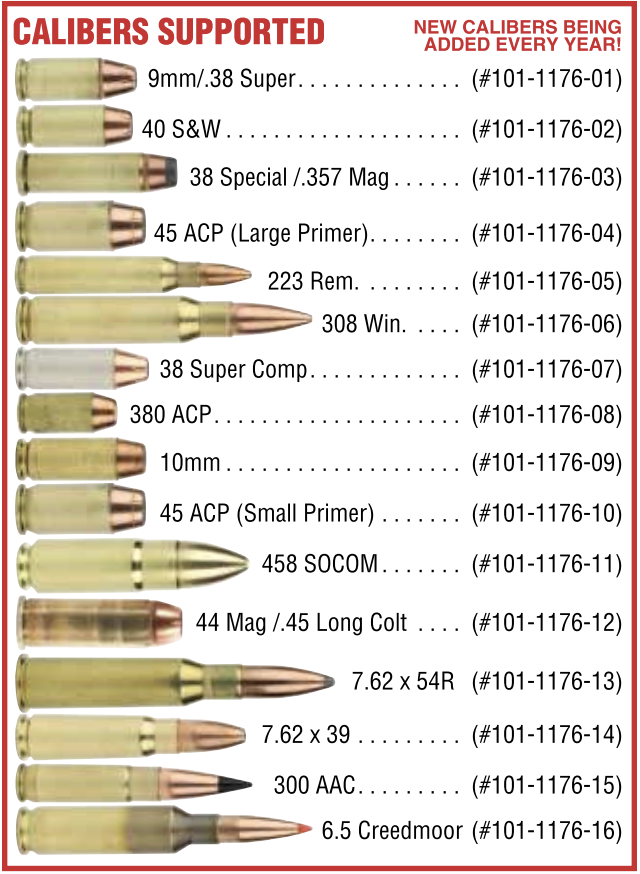

Available Calibers
- 9mm/.38 Super (#101-1176-01)
- 40 S&W (#101-1176-02)
- 38 Special /.357 Mag (#101-1176-03)
- 45 ACP (Large Primer) (#101-1176-04)
- 223 Remington (#101-1176-05)
- 308 Winchester (#101-1176-06)
- 38 Super Comp (#101-1176-07)
- 380 ACP (#101-1176-08)
- 10mm (#101-1176-09)
- 45 ACP (Small Primer) (#101-1176-10)
- 458 SOCOM (#101-1176-11)
- 44 Magnum /.45 Long Colt (#101-1176-12)
- 7.62 x 54R (#101-1176-13)
- 7.62x 39 (#101-1176-14)
- 300 AAC (#101-1176-15)
- 6.5 Creedmoor (#101-1176-16)
| SKU | 101-1176 |
|---|---|
| Number of Die Stations | 10 |
| Caliber Range | 380 Auto to 308 Win |
| Rounds per Hour | Up to 3500 |
| Drive System | Direct Gear Drive |
| Priming System | Onboard Primer Collator |
| Type of Case Feeder | 14" metal construction, up to 5800 rph |
| Type of Powder Measure | Digitally Controlled |
| Bullet Feeder | Mr. Bullet Feeder Pro |
| Digitally Controlled | Yes, microprocessor monitored and controlled |
| Sensors Included | Torque and Jam Sense (additional sensors optional) |
| Machine Weight | ~100 lbs. |
| Dimensions | 28" x 15" x 45" |
No special tools are needed, but a good Allen wrench set is recommended. It will take about an 1 hour to 90 minutes to get the press set up* meaning the press is physically set up but not ready to load on: that will take another 1 to 2 hours. The necessary steps are:
- Install the sensors
- Set up and adjust the bullet feeder and case feeder
- Set dies
- Set the sensors
- Set powder measure charge, etc...
In all, you should expect to spend 3+ hours to install the press and all sensors.
The ease and time required to change calibers depends on both your primer size and level of experience. Small calibers can take as little as 30 minutes or less with all necessary accessories. Small to large caliber or large to small caliber changes could take up to an hour depending on the number of pieces changed.
- The Rev is our flagship/workhorse press that comes standard with a larger 14” case feeder, Mr. Bullet feeder pro, digital powder measure, and commercial vibratory priming system.
- Emphasis on the “commercial grade” accessories here
- This is a direct drive unit that is extremely smooth in operation and designed to surpass that coveted million round mark.
